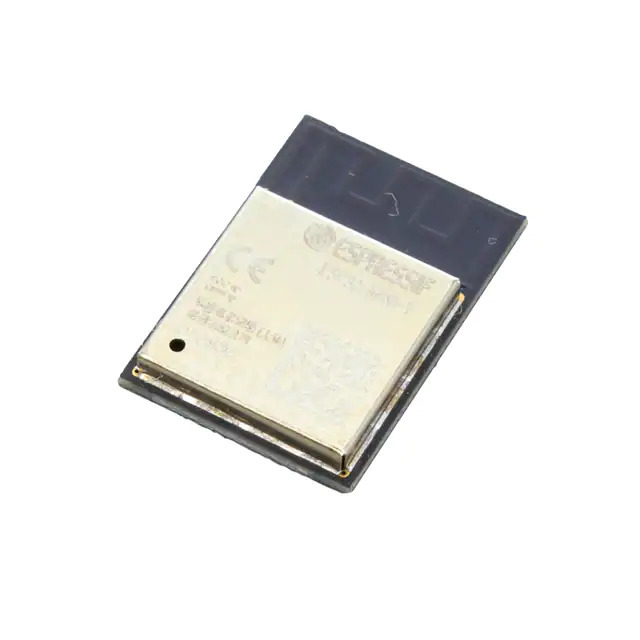

ESP32-MINI-1-N4 Espressif
Same model may have multiple batches, images only for reference.

ESP32-MINI-1-N4

Part No ESP32-MINI-1-N4
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE W/PCB ANT ESP-U4WDH / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.412GHz ~ 2.484GHz Integrated, Trace Chassis Mount
Datasheet
ESP32-MINI-1-N4 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation CCK, DSSS, OFDM
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 13dBm
Sensitivity -98dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART
Antenna Type Integrated, Trace
Utilized IC / Part ESP32
Memory Size 448kB ROM, 536kB SRAM
Voltage - Supply 2.3V ~ 3.6V
Current - Receiving 95mA ~ 100mA
Current - Transmitting 130mA ~ 240mA
Mounting Type Chassis Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Module
Base Product Number ESP32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1354348-ESP32-MINI-1-N4
Ultra Librarian 3D Model Ultra Librarian ESP32-MINI-1-N4 CAD Model

Description

The ESP32-MINI-1-N4 is an RF transceiver module from Espressif Systems.

  • Frequency Range: 2.412GHz to 2.484GHz
  • Mounting Type: Chassis Mount
  • Package: Module
  • Voltage Supply: 2.3V to 3.6V
  • Memory Size (ROM): 448kB
  • Memory Size (SRAM): 536kB
  • RF Standards: Bluetooth, WiFi
  • Antenna: Integrated Trace Antenna
  • Data Rate: 150Mbps
  • Protocols: 802.11b/g/n, Bluetooth v4.2 +EDR
  • Power Output: 13dBm
  • Sensitivity: -98dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART
  • Product Status: Active
  • Packaging: Tape and Reel
  • REACH Status: Unaffected
  • ECCN: 5A992C
  • Application: IoT Devices and Other Wireless Communication Systems
