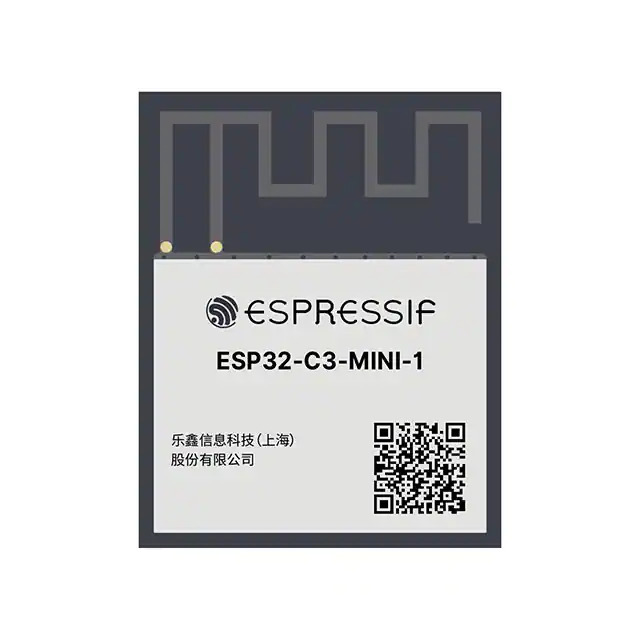

ESP32-C3-MINI-1-H4 Espressif
Same model may have multiple batches, images only for reference.

ESP32-C3-MINI-1-H4

Part No ESP32-C3-MINI-1-H4
Manufacturer Espressif
Catalog RF Transceiver Modules
Description IC PSRAM 4MB FLASH SMD / Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Surface Mount
Datasheet
ESP32-C3-MINI-1-H4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32-C3
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 20.5dBm
Sensitivity -104dBm
Serial Interfaces ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB
Antenna Type PCB Trace
Utilized IC / Part ESP32-C3FH4
Memory Size 4MB Flash, 384kB ROM, 408kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 82mA ~ 84mA
Current - Transmitting 290mA ~ 350mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 105°C (TA)
Package / Case 53-SMD Module
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1354205-ESP32-C3-MINI-1-H4
Ultra Librarian 3D Model Ultra Librarian ESP32-C3-MINI-1-H4 CAD Model

Description

The ESP32-C3-MINI-1-H4 is a compact and reliable RF transceiver module designed for wireless communication applications, manufactured by Espressif Systems.

  • Series: ESP32-C3
  • Frequency: 2.412GHz ~ 2.484GHz
  • Protocol: Bluetooth, WiFi
  • Antenna Type: PCB Trace
  • Data Rate: 150Mbps
  • Voltage - Supply: 3V ~ 3.6V
  • Current - Receiving: 82mA ~ 84mA
  • Current - Transmitting: 290mA ~ 350mA
  • Memory Size: 4MB Flash, 384kB ROM, 408kB SRAM
  • Serial Interfaces: ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB
  • Mounting Type: Surface Mount
  • Package / Case: 53-SMD Module
