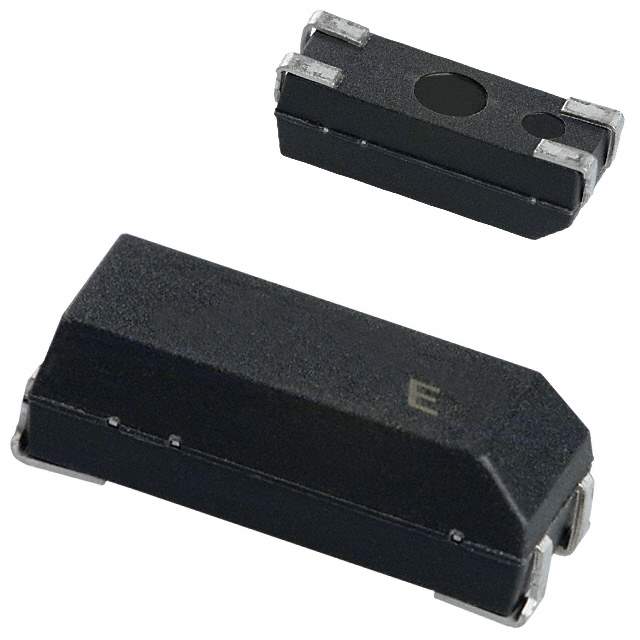

Q22MA5061016200 Real Image
Same model may have multiple batches, images only for reference.

Q22MA5061016200

Part No Q22MA5061016200
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Crystals
Description Crystal 11.0592MHz 18pF 4-Pin SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Frequency 11.0592 MHz
Frequency Stability 30 ppm
Frequency Tolerance 0.005 %
Load Capacitance 18 pF
Maximum Operating Temperature 70 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Pins 4
RoHS Compliant
Win Source Part Number 984559-Q22MA5061016200
Categories Crystals
Manufacturer Epson Electronics America Inc-Semiconductor Div
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian Q22MA5061016200 CAD Model

Description

The electronic component is a crystal with a frequency of 11.0592 MHz from Epson Electronics America Inc-Semiconductor Div.

  • Frequency: 11.0592 MHz
  • Frequency Stability: 30 ppm
  • Frequency Tolerance: 0.005%
  • Load Capacitance: 18 pF
  • Manufacturer: Epson Electronics America Inc-Semiconductor Div
  • Win Source Part Number: 984559-Q22MA5061016200
  • Component Type: Crystal
