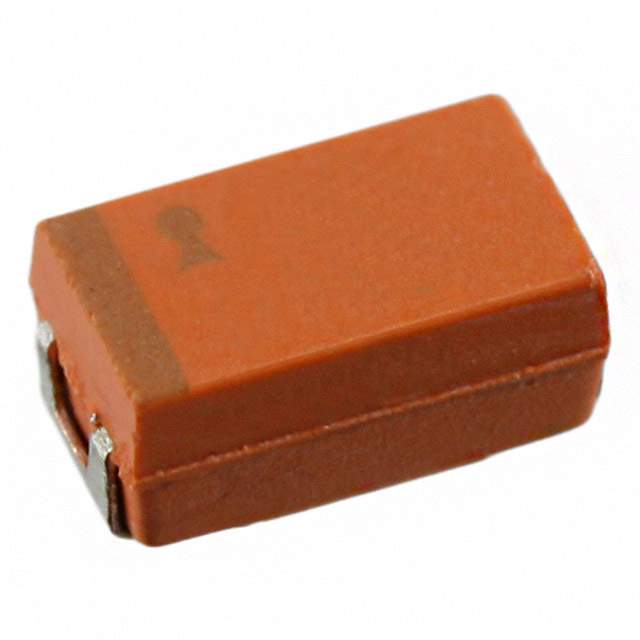

The TAJC686M020RNJ is a tantalum capacitor manufactured by AVX Corp/Kyocera Corp. It is part of the TAJ series, which is known for its general-purpose applications in electronic circuits. This specific part has a capacitance of 68µF and a voltage rating of 20V. The 'C' case size refers to the physical dimensions of the component, making it suitable for surface mount technology (SMT) assembly.

Applications

• Power Supply Filtering: Smoothing voltage rails in power supplies to reduce noise.
• Bypass Capacitors: Providing local decoupling for integrated circuits (ICs).
• DC Blocking: Blocking DC voltage while allowing AC signals to pass.
• General Coupling: Coupling signals between different stages of a circuit.
• Consumer Electronics: Widely used in various consumer electronic devices for general purposes.

Features

• Solid Tantalum Construction: Provides stable electrical characteristics.
• Surface Mount Technology (SMT): Enables automated assembly on printed circuit boards (PCBs).
• Small Case Size: Offers a compact footprint for high-density applications.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directives.
• Polarized Device: Requires proper polarity connection in the circuit.

Benefits

• Reliable Performance: Tantalum capacitors are known for their long-term stability.
• Compact Design: Surface mount packaging allows for smaller and denser circuit layouts.
• Easy to Assemble: Suitable for automated manufacturing processes.
• Wide Availability: The TAJ series is a popular choice with broad availability.
• Cost-Effective: Provides a balance between performance and cost.

Additional Details

This capacitor has a standard tolerance rating, typically ±20%. The operating temperature range typically spans from -55°C to +125°C. The ESR (Equivalent Series Resistance) is a key parameter to consider, especially in high-frequency applications, and this information can be found on the product datasheet. Tantalum capacitors are polarized devices, requiring careful attention to polarity during circuit design and assembly to prevent damage or failure. It is crucial to consult the manufacturer's datasheet for detailed specifications, including ESR, ripple current rating, and leakage current to ensure proper application and reliable performance. The capacitance is specified at 120Hz.
