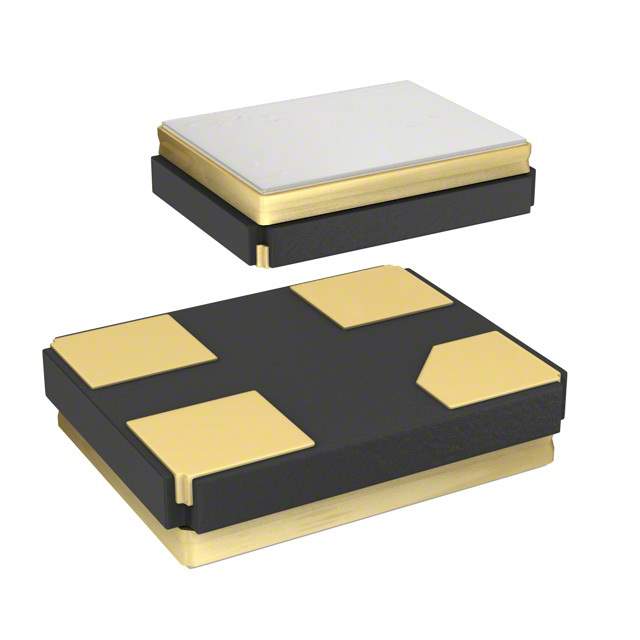

FA-20H 26.0000MF10Y-K5 Real Image
Same model may have multiple batches, images only for reference.

FA-20H 26.0000MF10Y-K5

Part No FA-20H 26.0000MF10Y-K5
Manufacturer Epson Electronics America Inc-Semiconductor Div
Catalog Crystals
Description CRYSTAL 26MHZ 10PF SMD
Datasheet
FA-20H 26.0000MF10Y-K5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer EPSON
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 26MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR 60 Ohm
Operating Mode Fundamental
Temperature Range - Operating -30°C to 85°C
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 1037534-FA-20H 26.0000MF10Y-K5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FA-20H 26.0000MF10Y-K5 CAD Model

Description

The FA-20H 26.0000MF10Y-K5 is a MHz crystal by EPSON. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Frequency: 26MHz
  • Frequency Stability: ±10ppm
  • ESR: 60 Ohm
  • Frequency Tolerance: ±10ppm
  • Mode: Fundamental
  • Load Capacitance: 10pF
  • Package: SMD
  • Height-Seated Maximum: 0.022" (0.55mm)
  • Temperature Range: -30°C to 85°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Category: Crystal, Oscillator, and Resonator
  • Popularity: Medium
