Same model may have multiple batches, images only for reference.

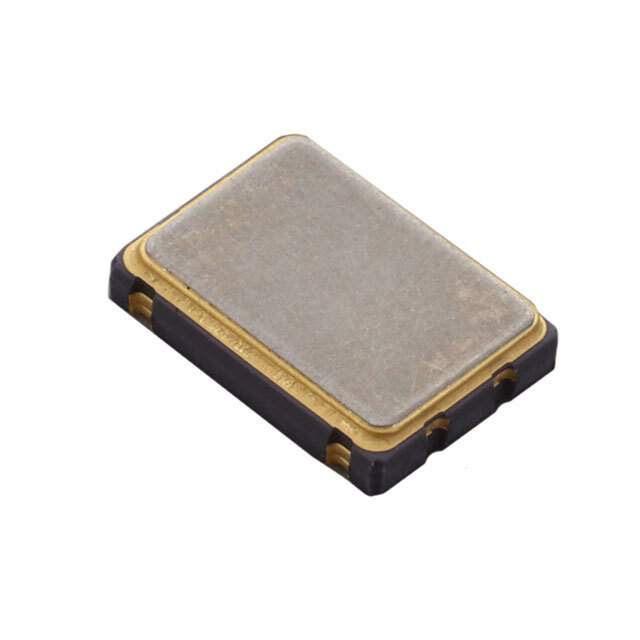

SG-8002CA 22.1184M-PCMB Real Image
Same model may have multiple batches, images only for reference.

SG-8002CA 22.1184M-PCMB

Part No SG-8002CA 22.1184M-PCMB
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 22.1184MHZ CMOS SMD / 22.1184 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-8002CA
Package Bulk
Product Status Not For New Designs
Base Resonator Crystal
Type XO (Standard)
Frequency 22.1184 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 28mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Current - Supply (Disable) (Max) 16mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-8002CA22.1184M-PCMB,SG-8002CA 22.1184M-PCMB-ND
Standard Package 1
Win Source Part Number 1092619-SG-8002CA 22.1184M-PCMB
Ultra Librarian 3D Model Ultra Librarian SG-8002CA 22.1184M-PCMB CAD Model

Description

The SG-8002CA22.1184M-PCMB is a high-quality oscillator that is designed to provide a stable frequency output.

  • Series: SG-8002CA series
  • Frequency: 22.1184 MHz
  • Temperature Range: -20°C to 70°C
  • Voltage Supply: 3.3V
  • Mounting: surface-mount device (SMD)
