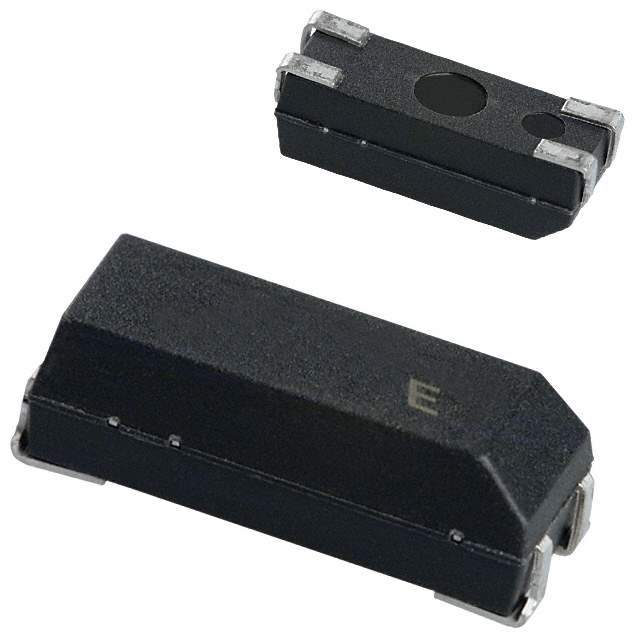

MA-505 8.0000M-C0 Real Image
Same model may have multiple batches, images only for reference.

MA-505 8.0000M-C0

Part No MA-505 8.0000M-C0
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±50ppm Crystal 18pF 80 Ohms 4-SOJ, 3.30mm pitch
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr EPSON
Series MA-505
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SOJ, 3.30mm pitch
Size / Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.181" (4.60mm)
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1351084-MA-505 8.0000M-C0
Ultra Librarian 3D Model Ultra Librarian MA-505 8.0000M-C0 CAD Model

Description

The Epson MA-505 MHz Crystal is a high-quality crystal oscillator that is perfect for use in various electronic applications.

  • Frequency: 8 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Tolerance: ±50ppm
  • Frequency Stability: ±30ppm
  • Mounting: Tape and Reel
  • Size: 0.500" L x 0.200" W (12.70mm x 5.08mm)
  • Height: 0.181" (4.60mm)
  • Mounting Type: Surface Mount
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Status: Obsolete
  • RoHS Compliant: No
