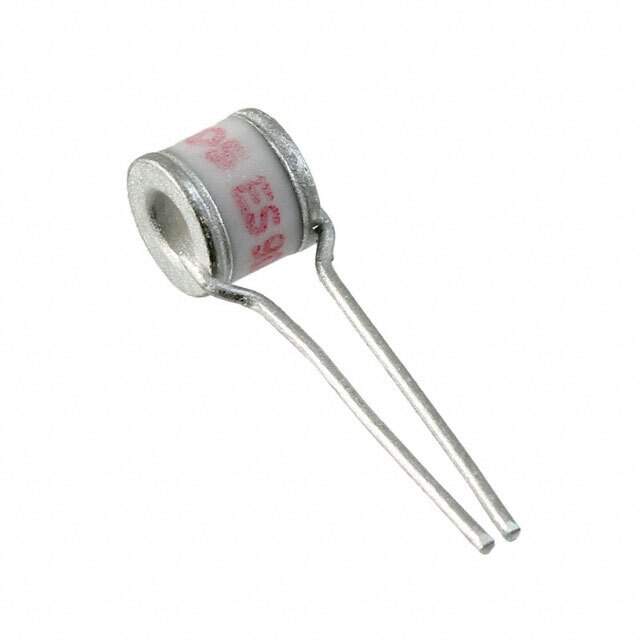

B88069X5151B502 Real Image
Same model may have multiple batches, images only for reference.

B88069X5151B502

Part No B88069X5151B502
Manufacturer EPCOS (TDK)
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 2.5KA 2 POLE TH / Gas Discharge Tube 90 V 2500A (2.5kA) ±20% 2 Pole Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr EPCOS - TDK Electronics
Series ES
Package Bulk
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 2500A (2.5kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Through Hole
Package / Case Radial, Box
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names B88069X5151B502-ND,495-5879,ES90XP,ES 90XP
Standard Package 500
Win Source Part Number 962431-B88069X5151B502
Ultra Librarian 3D Model Ultra Librarian B88069X5151B502 CAD Model

Description

The EPCOS (TDK) ES90XP is a gas discharge tube arrester (GDT) with a voltage DC spark over of 90 V.

  • Voltage DC Spark Over: 90 V ±20%
  • Impulse Discharge Current: 2500A (2.5kA)
  • Mounting Type: Through-hole
  • Package: Radial box
  • Poles: 2
  • RoHS: Compliant
  • Mfr: EPCOS - TDK Electronics
