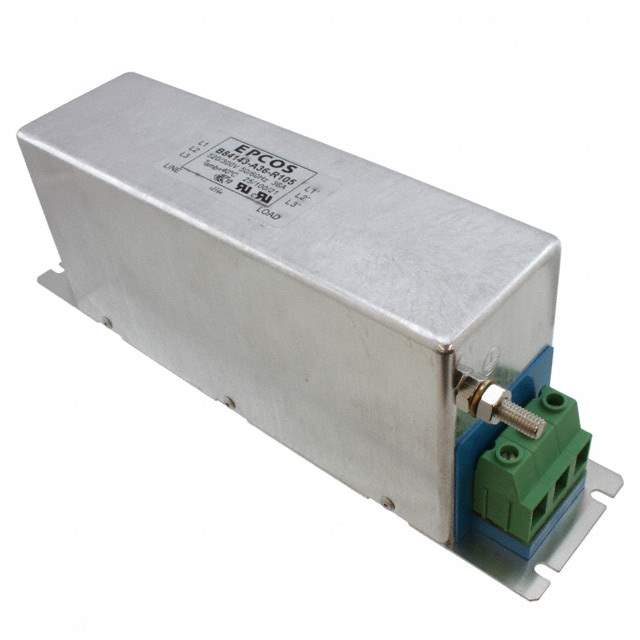

B84143A0036R105 Real Image
Same model may have multiple batches, images only for reference.

B84143A0036R105

Part No B84143A0036R105
Manufacturer EPCOS (TDK)
Catalog Power Line Filter Modules
Description LINE FILTER 520/300VAC 36A CHASS / Three Phase (Delta) EMC/EMI Line Filter 36 A 520V, 300VAC 50/60Hz Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr EPCOS - TDK Electronics
Series B84143A
Package Tray
Filter Type Three Phase (Delta)
Configuration Single Stage
Voltage - Rated AC 520V, 300V
Current 36 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency cUR, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Terminal Block
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names B84143A 36R105,B84143A36R105,B84143-A36-R105,B84143A 36R105,B84143-A36-R105-ND,495-4488
Standard Package 4
Win Source Part Number 1047994-B84143A0036R105
Ultra Librarian 3D Model Ultra Librarian B84143A0036R105 CAD Model

Description

The B84143A0036R105 is a power line filter module designed for use in general purpose applications.

  • Configuration: Single Stage
  • Filter Type: Three-Phase (Delta)
  • Current Rating: 36A
  • Voltage Rating: 520V and 300V
  • REACH Affected: Yes
  • HTSUS: 8548.00.0000
