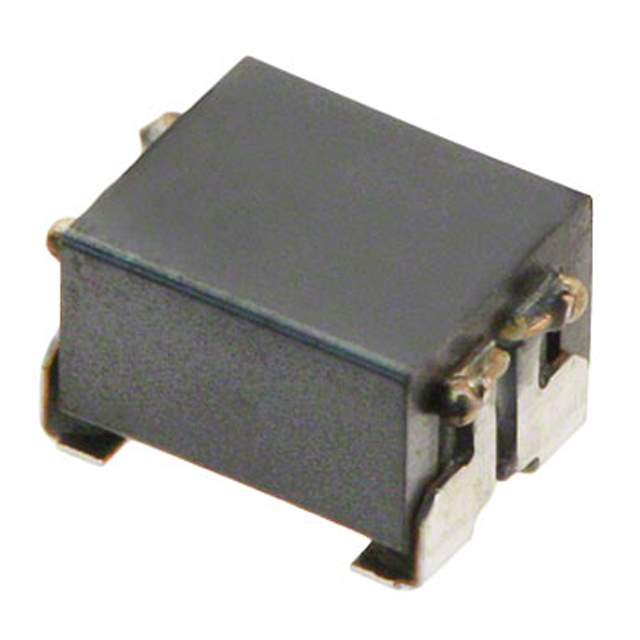

B82789C223H1 Real Image
Same model may have multiple batches, images only for reference.

B82789C223H1

Part No B82789C223H1
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN SMD AEC-Q200
Datasheet
B82789C223H1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 22μH @ 100kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 580 mOhm
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Temperature Range - Operating -55°C to 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Height (Max) 0.118" (3.00mm)
Dimension Horizontal, 4 L-Lead
Win Source Part Number 049018-B82789C223H1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82789C223H1 CAD Model

Description

Product Description

The B82789C223H1 is an advanced common mode choke designed for electronic applications requiring high interference suppression efficiency. It offers excellent attenuation characteristics over a broad frequency range.

Applications

  • Switch Mode Power Supplies (SMPS)
  • Frequency Converters
  • Medical Equipment
  • Telecommunication Devices

Features and Benefits

  • High Inductance: Provides superior EMI suppression.
  • Compact Design: Space-saving for modern electronic layouts.
  • Temperature Range: Operates effectively from -40°C to +125°C.

With its robust design, the B82789C223H1 ensures reliable performance in harsh environments, making it a versatile choice for various electronic projects.
