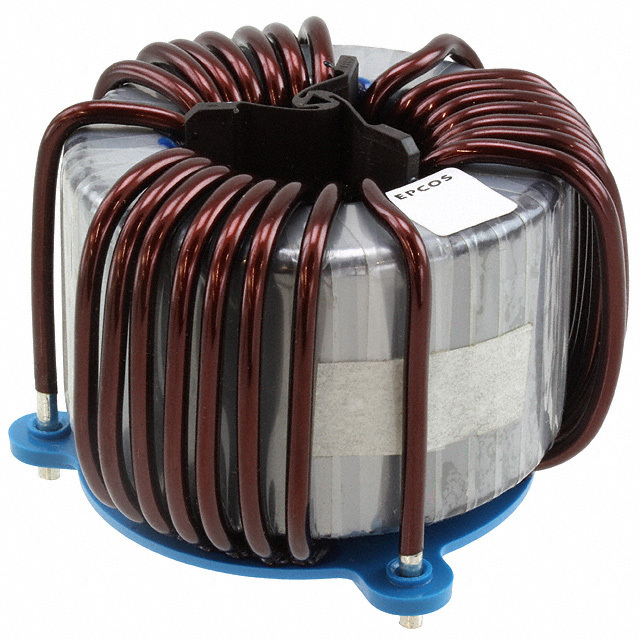

B82747S4303A041 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82747S4303A041

Part No B82747S4303A041
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 820 µH @ 100 kHz 3 Line Common Mode Choke Through Hole 35A DCR 1.4mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82747
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 820 µH @ 100 kHz
Current Rating (Max) 35A
DC Resistance (DCR) (Max) 1.4mOhm (Typ)
Voltage Rating - AC 440/250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 2.520" Dia (64.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, 6 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482316-B82747S4303A041
Ultra Librarian 3D Model Ultra Librarian B82747S4303A041 CAD Model
