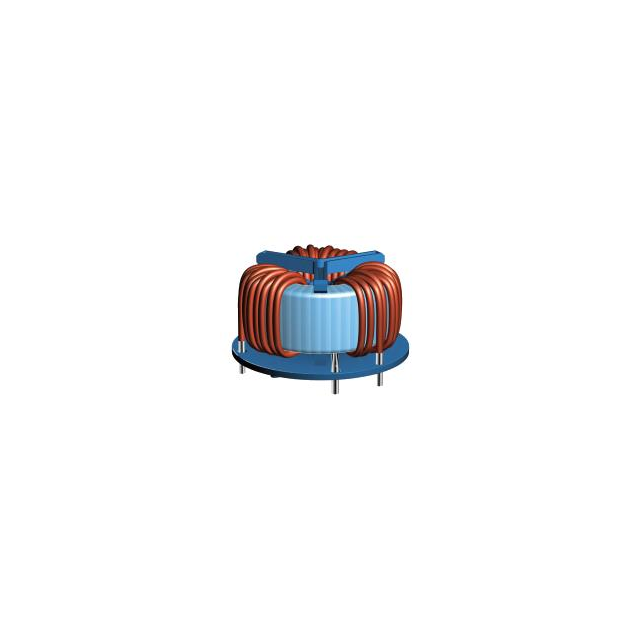

B82746S4203A020 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82746S4203A020

Part No B82746S4203A020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 750 µH @ 100 kHz 3 Line Common Mode Choke Through Hole 20A DCR 2.7mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82746S4
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 750 µH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 2.7mOhm
Voltage Rating - AC 500/300V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.165" Dia (55.00mm)
Height (Max) 1.260" (32.00mm)
Package / Case Horizontal, 6 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1482306-B82746S4203A020
Ultra Librarian 3D Model Ultra Librarian B82746S4203A020 CAD Model
