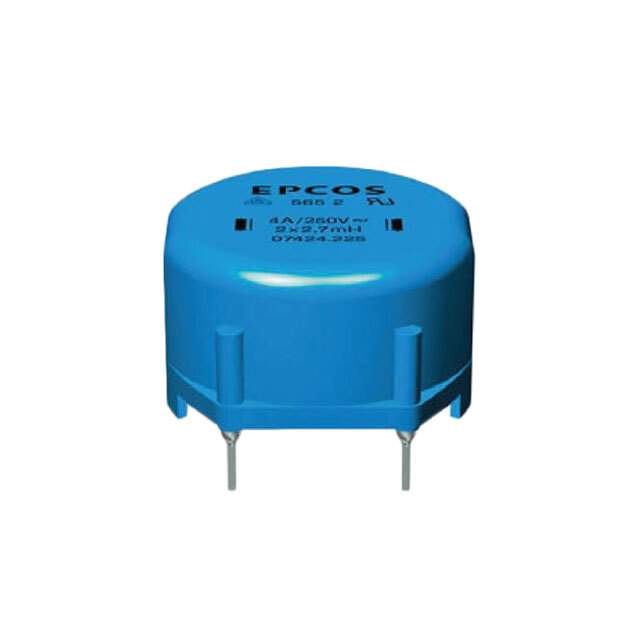

B82723A2602N001 Real Image
Same model may have multiple batches, images only for reference.

B82723A2602N001

Part No B82723A2602N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 1MH 6A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 51 Weeks
Features 1 2 Line Common Mode Choke Through Hole 6A DCR 22mOhm (Typ)
Manufacturer EPCOS (TDK)
Series B82723
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Through Hole
Package Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number B82723A2602N 1, B82723A2602N1-ND, B82723A2602N1, 495-75230
Quantity per package 400
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 847818-B82723A2602N001
Ultra Librarian 3D Model Ultra Librarian B82723A2602N001 CAD Model

Description

The EPCOS (TDK) B82723A2602N001 is a B82723 series common mode choke designed for filtering. It is manufactured by EPCOS (TDK).

  • Maximum Current: 6A
  • Typical DCR: 22 mOhm
  • Package: Horizontal, 4 PC pin
  • Mounting Type: Through hole
  • REACH: Unaffected
  • HTSUS: 8548.90.0100
  • Estimated Production Lead Time: 51 weeks
