Product Overview: HMC424LP3ETR by Analog Devices Inc.

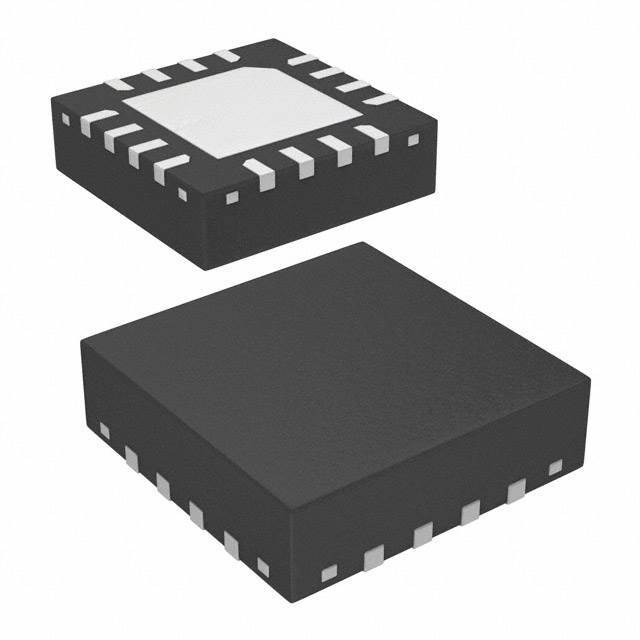

The HMC424LP3ETR is a high-performance, digitally controlled variable gain amplifier (VGA) from Analog Devices Inc., designed to offer precise attenuation and consistent linear gain control in a variety of RF and IF signal processing applications. This compact, surface-mount device is housed in a 16-lead 3x3mm QFN package, making it suitable for space-constrained applications while providing robust performance across its operating range.

The HMC424LP3ETR operates over a broad frequency range from DC to 4 GHz, delivering a wide dynamic range with an attenuation control range of 0 to 31.5 dB in 0.5 dB steps. The fine attenuation steps allow for precise signal level control, which is essential in applications such as cellular base stations, broadband wireless access systems, test equipment, and satellite communications systems.

Featuring a serial control interface, the HMC424LP3ETR allows for easy integration into digital control systems. This interface enables the user to program the attenuation settings with high resolution and accuracy. The device's CMOS-compatible control logic ensures seamless integration with a variety of microcontrollers and digital interface standards.

The HMC424LP3ETR also boasts excellent RF performance with low insertion loss and high IP3 (third-order intercept point), ensuring minimal signal distortion and high linearity across its operating frequency range. This makes it an ideal choice for maintaining signal integrity in complex signal chains where variable gain control is required.

With a supply voltage range of +3 to +5 V, the HMC424LP3ETR is versatile and can be used in both portable and stationary applications, where power supply availability may vary. Additionally, it features a power-up state selection that allows users to choose the default attenuation state at power-up, providing flexibility in system design and initialization.

In summary, the HMC424LP3ETR from Analog Devices Inc. is a sophisticated, digitally controlled VGA that offers precision, flexibility, and high performance for a wide array of RF and IF applications. Its compact form factor, extensive frequency range, and fine attenuation steps make it a valuable component for designers looking to optimize their signal processing chains.
