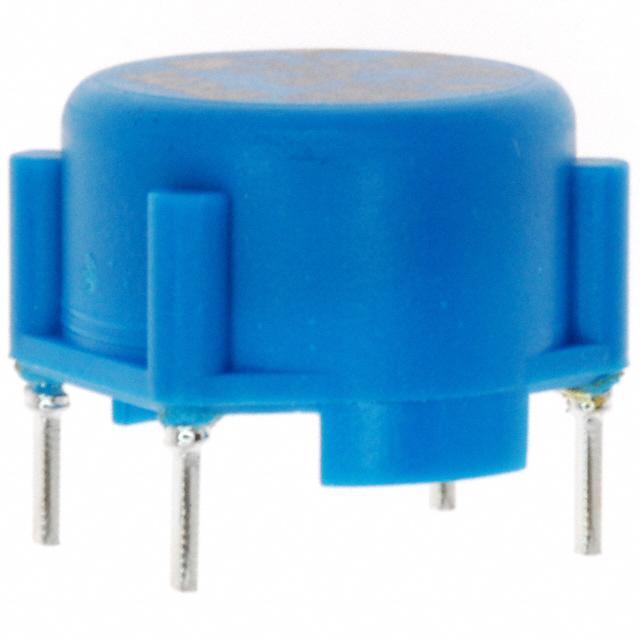

B82721A2401N020 EPCOS (TDK) B82721A2401N020 Real Image B82721A2401N020 real image
B82721A2401N020 EPCOS (TDK) B82721A2401N020 Real Image B82721A2401N020 real image
Same model may have multiple batches, images only for reference.

B82721A2401N020

Part No B82721A2401N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 39MH 400MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 39mH @ 10kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.496" (12.60mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 200252-B82721A2401N020
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B82721A2401N020 CAD Model

Description

Description

The B82721A2401N020 is an advanced common mode choke designed to deliver excellent EMI filtering in high-frequency applications. Its robust design makes it an ideal choice for demanding electronic applications.

Applications/Projects

  • High-speed data lines
  • Medical equipment
  • Communication systems
  • Home automation devices

Features and Benefits

  • High attenuation of common mode noise
  • Stable performance across temperature variations
  • Compact and lightweight for versatile use
  • Complies with industry standards for safety and efficiency

Additional Details

The B82721A2401N020 is optimized for high-frequency applications, providing superior interference suppression and maintaining signal integrity in sensitive environments.
