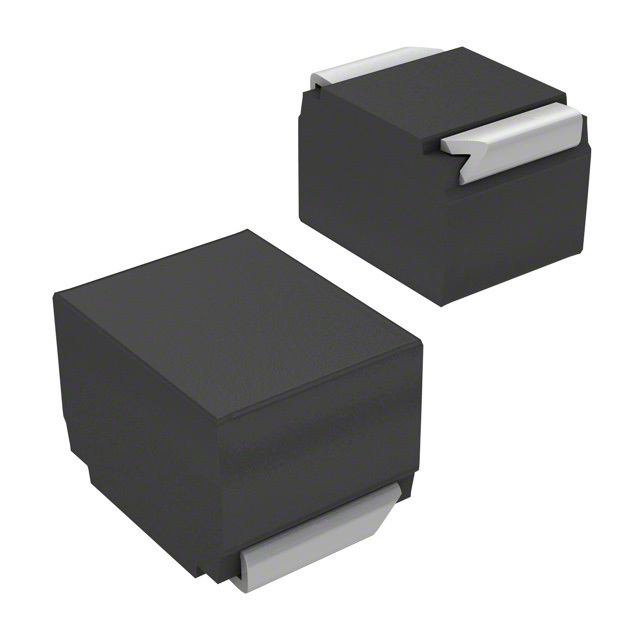

B82422H1684J000

Name: B82422H1684J000
Brand: EPCOS (TDK)
SKU: 1488946
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B82422H1684J000
Manufacturer	EPCOS (TDK)
Catalog	Fixed Inductors
Description	680 µH Unshielded Drum Core, Wirewound Inductor 61 mA 31Ohm Max 2-SMD, J-Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	EPCOS - TDK Electronics
Series	SIMID
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	680 µH
Tolerance	±5%
Current Rating (Amps)	61 mA
Shielding	Unshielded
DC Resistance (DCR)	31Ohm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	3MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	796 kHz
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Supplier Device Package	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1488946-B82422H1684J000
Ultra Librarian 3D Model	Ultra Librarian B82422H1684J000 CAD Model
