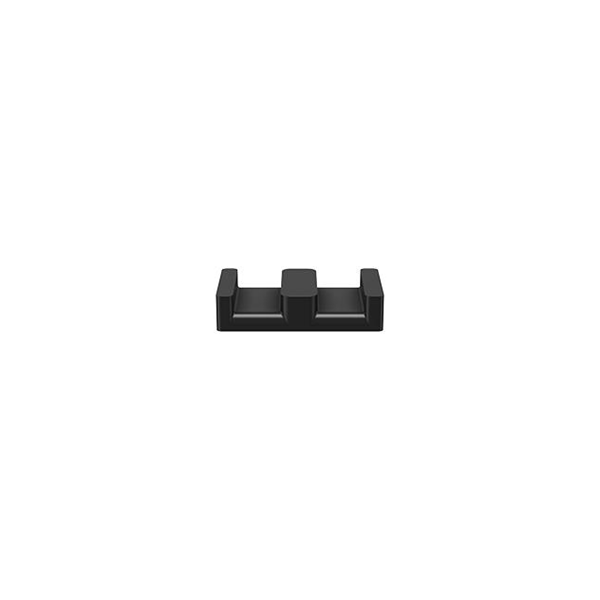

B66291G0100X187 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B66291G0100X187

Part No B66291G0100X187
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N87 Ferrite Core ELP Type 1.701" (43.20mm) Length 1.098" (27.90mm) Width Diameter 0.374" (9.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series ELP43/10/28
Packaging Bulk
Part Status Not For New Designs
Core Type ELP
Supplier Device Package ELP 43 x 10 x 28
Material N87
Inductance Factor (Al) 7.3 µH
Tolerance ±25%
Gap Gapped
Effective Permeability (µe) 1560.0
Core Factor (ΣI/A) mm⁻¹ 0.27
Effective Length (le) mm 61.1
Effective Area (Ae) mm2 225.0
Minimum Core Cross Section (Amin) mm2 225.0
Effective Magnetic Volume (Ve) mm3 14000.0
Finish Uncoated
Height 0.374" (9.50mm)
Length 1.701" (43.20mm)
Width 1.098" (27.90mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490477-B66291G0100X187
Ultra Librarian 3D Model Ultra Librarian B66291G0100X187 CAD Model
