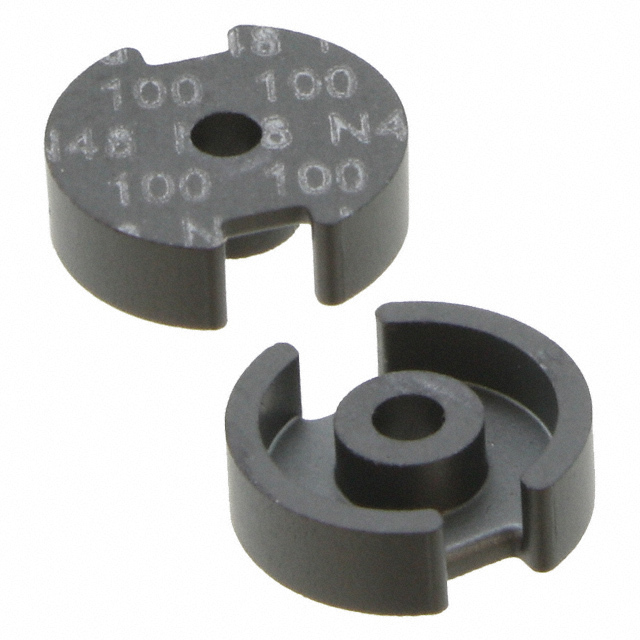

Same model may have multiple batches, images only for reference.
B65511A0025A001 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65511A0025A001

Part No B65511A0025A001
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated K1 Ferrite Core P (Pot Core) Type Length Width 0.289" (7.35mm) Diameter 0.083" (2.10mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P7/4
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 7 x 4
Material K1
Diameter 0.289" (7.35mm)
Inductance Factor (Al) 25 nH
Tolerance ±3%
Gap Gapped
Effective Permeability (µe) 28.0
Initial Permeability (µi) 80
Core Factor (ΣI/A) mm⁻¹ 1.43
Effective Length (le) mm 10.0
Effective Area (Ae) mm2 7.0
Effective Magnetic Volume (Ve) mm3 70.0
Finish Uncoated
Height 0.083" (2.10mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489535-B65511A0025A001
Ultra Librarian 3D Model Ultra Librarian B65511A0025A001 CAD Model
