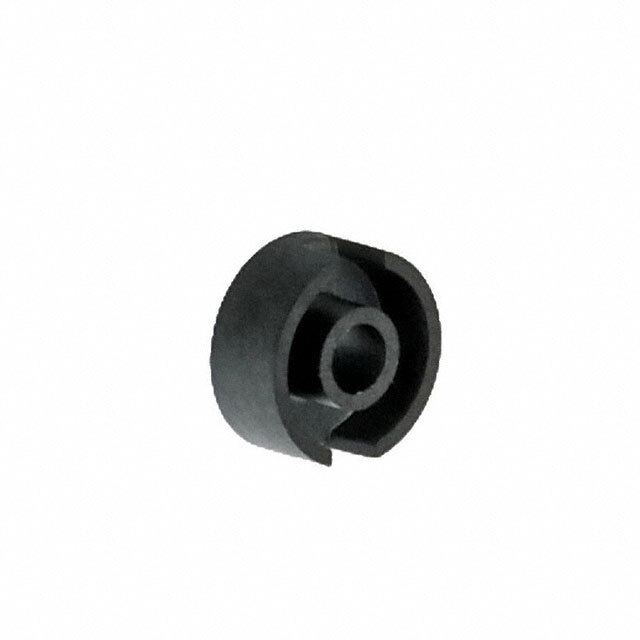

B65495B0000Y030 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65495B0000Y030

Part No B65495B0000Y030
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N30 Ferrite Core P (Pot Core) Type Length Width 0.183" (4.65mm) Diameter 0.079" (2.00mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P4.6/4.1
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 4.6 x 4.1
Material N30
Diameter 0.183" (4.65mm)
Inductance Factor (Al) 800 nH
Tolerance -30%, +40%
Gap Ungapped
Effective Permeability (µe) 1730.0
Initial Permeability (µi) 4300
Core Factor (ΣI/A) mm⁻¹ 2.7
Effective Length (le) mm 7.6
Effective Area (Ae) mm2 2.8
Effective Magnetic Volume (Ve) mm3 21.3
Finish Uncoated
Height 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489526-B65495B0000Y030
Ultra Librarian 3D Model Ultra Librarian B65495B0000Y030 CAD Model
