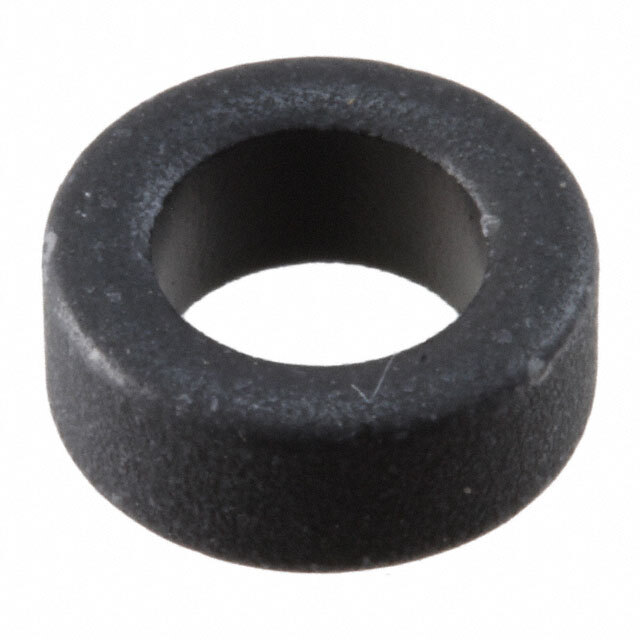

B64290P0035X830 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290P0035X830

Part No B64290P0035X830
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Parylene N30 Ferrite Core Toroid Type Length Width 0.099" (2.52mm) Diameter 0.040" (1.02mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TC2.5/1.5/1
Packaging Box
Core Type Toroid
Material N30
Diameter 0.099" (2.52mm)
Inductance Factor (Al) 440 nH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 4300
Core Factor (ΣI/A) mm⁻¹ 12.3
Effective Length (le) mm 6.02
Effective Area (Ae) mm2 0.49
Effective Magnetic Volume (Ve) mm3 3.0
Finish Parylene
Height 0.040" (1.02mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489490-B64290P0035X830
Ultra Librarian 3D Model Ultra Librarian B64290P0035X830 CAD Model
