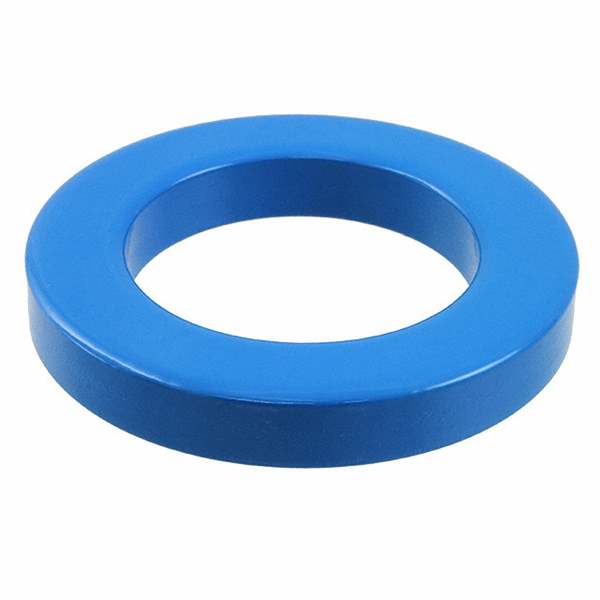

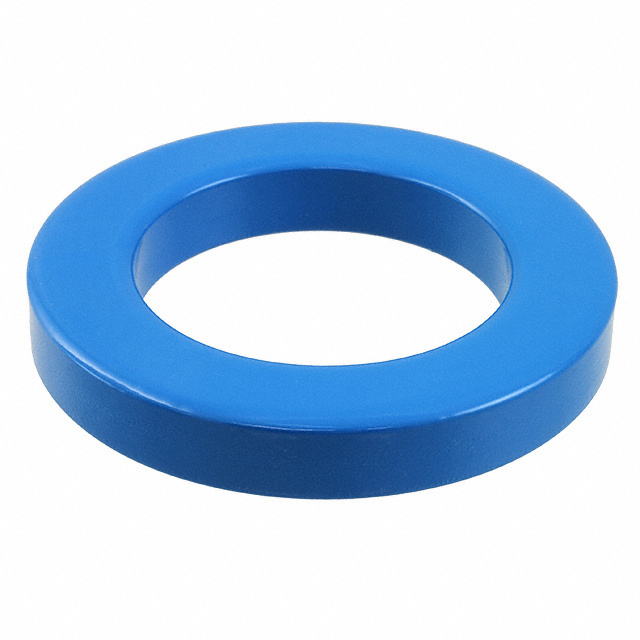

B64290L0084X830 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290L0084X830

Part No B64290L0084X830
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Epoxy N30 Ferrite Core Toroid Type Length Width 4.126" (104.80mm) Diameter 0.650" (16.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series TX102/66/15
Packaging Box
Core Type Toroid
Material N30
Diameter 4.126" (104.80mm)
Inductance Factor (Al) 5.5 µH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 4200
Core Factor (ΣI/A) mm⁻¹ 0.96
Effective Length (le) mm 255.3
Effective Area (Ae) mm2 267.2
Effective Magnetic Volume (Ve) mm3 68220.0
Finish Epoxy
Height 0.650" (16.50mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489383-B64290L0084X830
Ultra Librarian 3D Model Ultra Librarian B64290L0084X830 CAD Model
