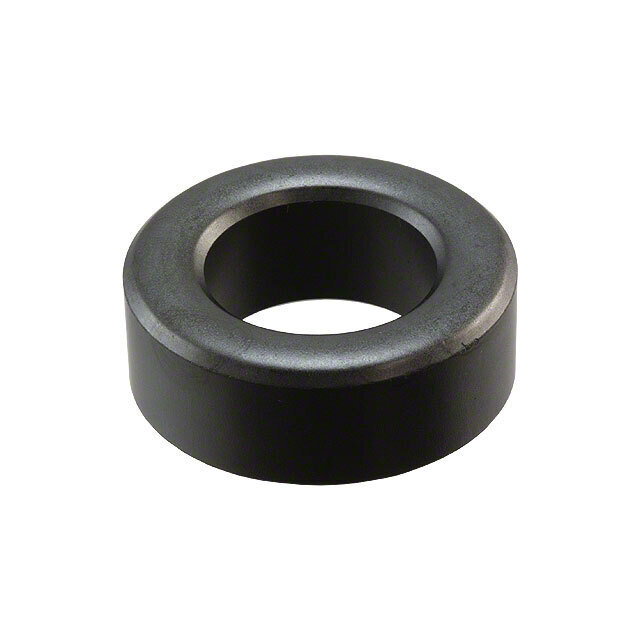

B64290A0719X049 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290A0719X049

Part No B64290A0719X049
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N49 Ferrite Core Toroid Type Length Width 0.870" (22.10mm) Diameter 0.311" (7.90mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series T22.1/13.7/7.9
Packaging Box
Core Type Toroid
Supplier Device Package R 22.1 x 13.7 x 7.9
Material N49
Diameter 0.870" (22.10mm)
Inductance Factor (Al) 1.13 µH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 1500
Core Factor (ΣI/A) mm⁻¹ 1.66
Effective Length (le) mm 54.2
Effective Area (Ae) mm2 32.6
Effective Magnetic Volume (Ve) mm3 1763.0
Finish Uncoated
Height 0.311" (7.90mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489331-B64290A0719X049
Ultra Librarian 3D Model Ultra Librarian B64290A0719X049 CAD Model
