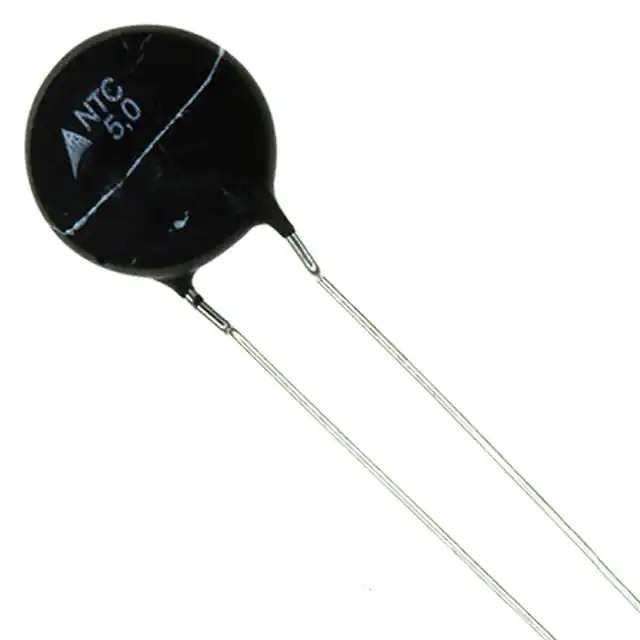

B57236S0509M000 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B57236S0509M000

Part No B57236S0509M000
Manufacturer EPCOS (TDK)
Catalog Inrush Current Limiters (ICL)
Description ICL 5 OHM 20% 4.5A 11.5MM / Inrush Current Limiter 5 Ohms ±20% 4.5 A 0.453" (11.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Inrush Current Limiters (ICL)
Mfr EPCOS - TDK Electronics
Series S236
Package Bulk
Product Status Active
R @ 25°C 5 Ohms
Tolerance ±20%
Current - Steady State Max 4.5 A
Diameter 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Approval Agency UL
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361650-B57236S0509M000
Ultra Librarian 3D Model Ultra Librarian B57236S0509M000 CAD Model

Description

The B57236S0509M000 is an inrush current limiter (ICL) from the S236 series by EPCOS - TDK Electronics.

  • Tolerance: ±20%
  • R Value @ 25°C: 5 Ohms
  • Maximum Steady-State Current: 4.5 A
  • Diameter: 0.453" (11.50mm)
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
  • Approvals: UL
  • Product Status: Active
