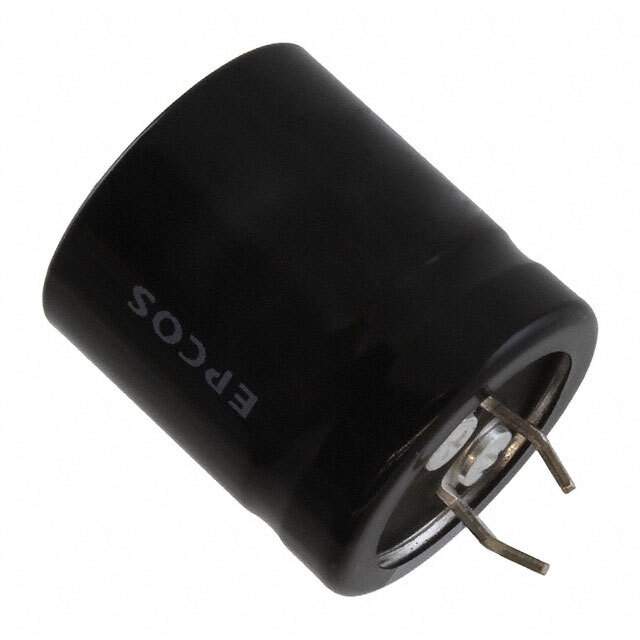

B43501A3686M000 Real Image
Same model may have multiple batches, images only for reference.

B43501A3686M000

Part No B43501A3686M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 385V SNAP
Datasheet
B43501A3686M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B43501
Packaging Bulk
Capacitance 68μF
Tolerance ±20%
Voltage Rating 385V
ESR (Equivalent Series Resistance) 980 mOhm @ 100Hz
Lifetime @ Temp. 10000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 610mA @ 100Hz
Impedance 1.56 Ohm
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.063" (27.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 763356-B43501A3686M000
Popularity Medium
Supply and Demand Status Balance
Family Name B43501
Introduction Date June 25, 2001
ECCN EAR99
Country of Origin Brazil
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian B43501A3686M000 CAD Model

Description

The EPCOS (TDK) 763356-B43501A3686M000 capacitor is manufactured by EPCOS (TDK).

  • Capacitance: 68μF
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 85°C
  • Package: Radial, Can - Snap-In
  • Voltage Rating: 385V
  • Impedance: 1.56 Ohm
  • ESR: 980 mOhm @ 100Hz
  • Lifetime: 10000 Hrs @ 85°C
  • Polarized: Yes
  • Family Name: B43501
  • Category: Capacitors
  • Dimension: 0.866" Dia (22.00mm)
  • Ripple Current - Low Frequency: 610mA @ 100Hz
  • Cross-Reference: ECOS2TA680BB, ECEC2TA680CA, ECOS2TA680BA
  • Introduction Date: June 25, 2001
  • ECCN: EAR99
  • Country of Origin: Brazil
