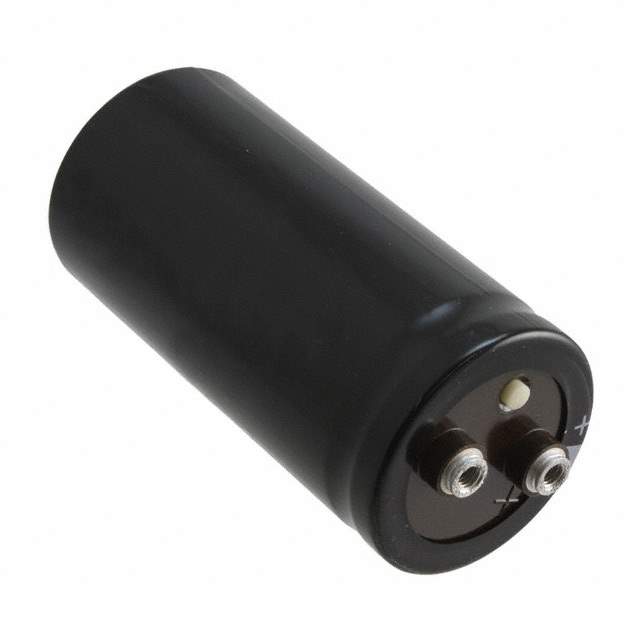

B41560A8229M Real Image
Same model may have multiple batches, images only for reference.

B41560A8229M

Part No B41560A8229M
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 22000UF 20% 63V SCREW
Datasheet
B41560A8229M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 22000μF
Tolerance ±20%
Voltage Rating 63V
ESR 14 mOhm @ 100Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 12A @ 100Hz
Impedance 14 mOhm
Lead Spacing 0.874" (22.20mm)
Height - Seated (Max) 4.161" (105.70mm)
Mounting Chassis Mount
Dimension Radial, Can - Screw Terminals
Win Source Part Number 68832-B41560A8229M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B41560A8229M CAD Model

Description

Product Overview

The B41560A8229M is a robust aluminum electrolytic capacitor, known for its durability and high capacity. This component is perfect for applications that require stable performance over extended periods.

Applications

  • Audio systems
  • Telecommunications
  • Medical devices
  • Instrumentation
  • Energy storage systems

Features and Benefits

  • High energy density for more power retention
  • Excellent temperature stability
  • Extended lifespan reduces maintenance needs
  • Low ESR contributes to efficient performance
  • Environmentally friendly manufacturing process

Additional Details

The B41560A8229M boasts exceptional endurance and efficient energy handling, making it highly adaptable for critical applications. It's crafted to meet the needs of high-tech, precision-oriented projects.
