Same model may have multiple batches, images only for reference.

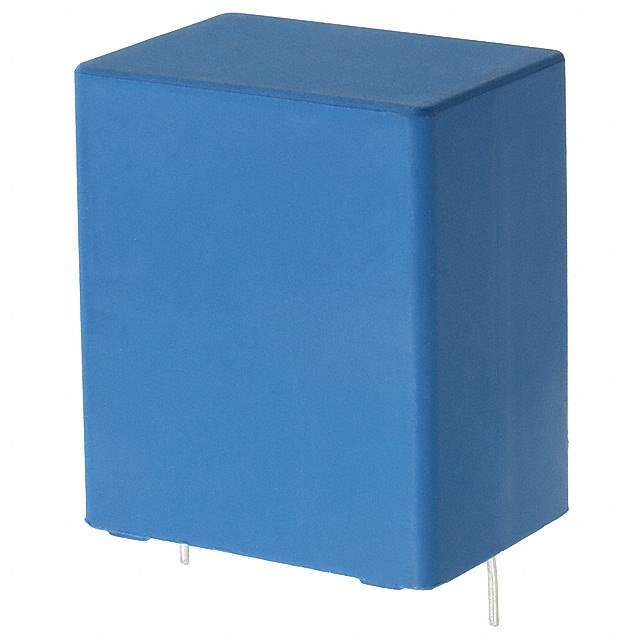

B32774D0505K Real Image
Same model may have multiple batches, images only for reference.

B32774D0505K

Part No B32774D0505K
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 5UF 10% 1.1KVDC RADIAL
Datasheet
B32774D0505K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 5μF
Tolerance ±10%
Voltage Rating - DC 1100V (1.1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 10.9 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.748" W (31.50mm x 19.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199808-B32774D0505K
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B32774D0505K CAD Model

Description

Overview

The B32774D0505K is an industrial-grade film capacitor, engineered to deliver remarkable performance in high-demand situations.

Features and Benefits

  • Robust Construction: Built to withstand harsh conditions and extended use.
  • Excellent Capacitance Stability: Maintains capacitance values over long periods of operation.
  • Low ESR: Provides superior efficiency in various circuit configurations.

Applications

  • Automotive Electronics: Suitable for use in advanced automotive systems.
  • Renewable Energy: Optimal for solar power applications.
  • Electric Drives: Ideal for electric motor drive systems.

Additional Details

The B32774D0505K capacitor is a testament to advanced engineering, offering solutions that meet the modern electronic demands efficiently.
