Same model may have multiple batches, images only for reference.

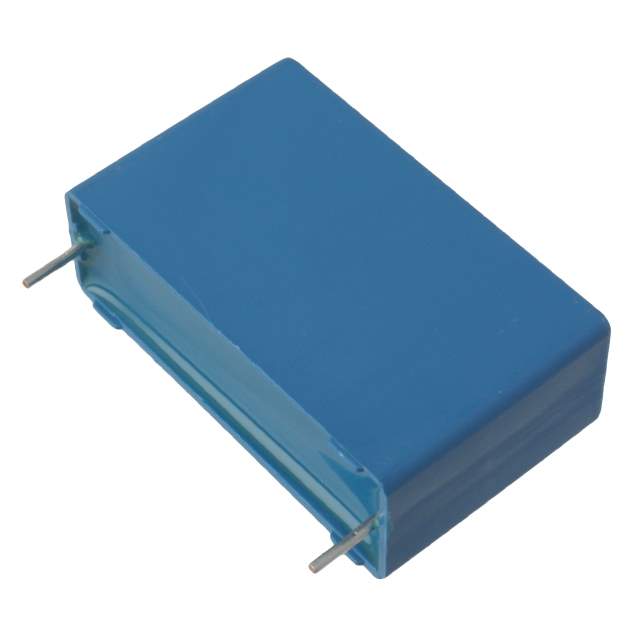

B32674D8105J Real Image
Same model may have multiple batches, images only for reference.

B32674D8105J

Part No B32674D8105J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 5% 875VDC RADIAL
Datasheet
B32674D8105J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 1μF
Tolerance ±5%
Voltage Rating - DC 875V
Dielectric Material Polypropylene (PP), Metallized
ESR 22.2 mOhm
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.240" L x 0.532" W (31.50mm x 13.50mm)
Height - Seated (Max) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications DC Link, DC Filtering
Features Long Life
Win Source Part Number 199774-B32674D8105J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32674D8105J CAD Model

Description

Description:

The B32674D8105J is a versatile metallized film capacitor offering robust performance for diverse electronic applications. With a focus on reliability, this capacitor is tailored for DC-link and pulse applications.

Features and Benefits:

  • Nominal Capacitance: 1.0μF
  • Tolerance: ±5%
  • Rated Voltage: 1000VDC
  • High current-carrying capability with low ESR and ESL
  • Extended life expectancy due to self-healing nature
  • Lightweight solution suitable for demanding environments

Applications:

  • Pulse Generators
  • High-Voltage DC Filtering
  • Resonant Circuits
  • Power Factor Correction Systems
