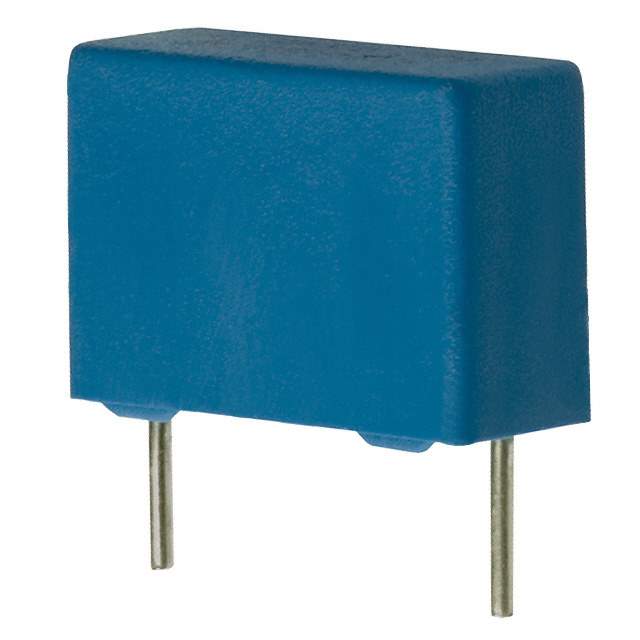

B32652A7223K000 Real Image
Same model may have multiple batches, images only for reference.

B32652A7223K000

Part No B32652A7223K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.022UF 1.25KVDC RADIAL / 0.022 µF Film Capacitor 500V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer EPCOS - TDK Electronics
Packaging Bulk
Capacitance 0.022 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Part Number B32652A7223K,495-6872,B32652A7223K-ND
Standard Package 500
Win Source Part Number 1328535-B32652A7223K000
Ultra Librarian 3D Model Ultra Librarian B32652A7223K000 CAD Model

Description

The B32652A7223K000 film capacitor from EPCOS - TDK Electronics is an ideal component for automotive applications.

  • Capacitance: 0.022 µF
  • Voltage Rating: 1250V (1.25kV)
  • Tolerance: ±10%
  • AEC-Q200 Rated: Yes
  • Dielectric Material: Polypropylene (PP), Metallized
  • Packaging: Radial
  • Height Seated: 0.571 inches (14.50mm)
  • Lead Spacing: 0.591 inches (15.00mm)
  • Operating Temperature Range: -55°C to 100°C
  • Dimensions: 0.709 inches L x 0.335 inches W (18.00mm x 8.50mm)
  • Termination: PC Pins
  • MSL Level: Not Applicable
  • REACH Status: Unaffected
  • HTSUS: 8532.25.0070
