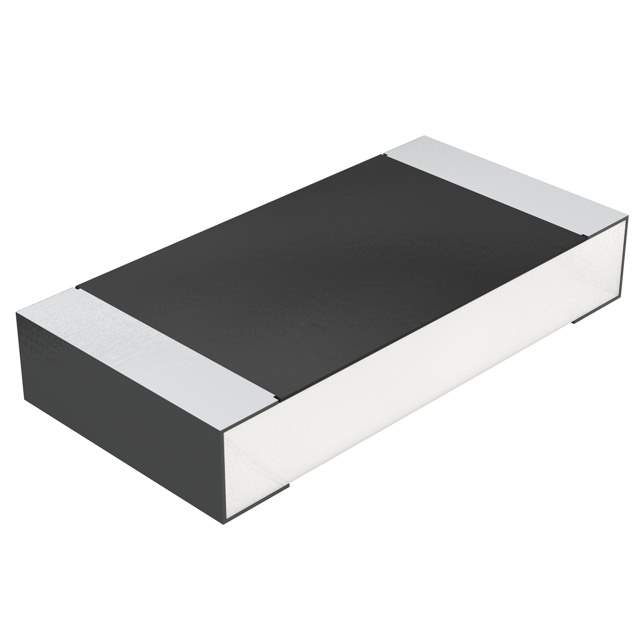

The CRCW12066K81FKTA is a thick film chip resistor manufactured by Vishay. It is a surface mount resistor with a 1206 case size, indicating its physical dimensions. This resistor is designed for general purpose applications in electronic circuits and provides a stable and reliable resistance value.

Applications

• General purpose circuit design
• Voltage dividers
• Current limiting
• Pull-up and pull-down resistors
• Signal termination

Features

• Surface mount 1206 case size
• Thick film technology
• 6.81 kΩ Resistance
• ±1% Tolerance
• Temperature Coefficient of Resistance (TCR): ±100 ppm/°C
• High stability

Benefits

• Precise resistance value with a tolerance of ±1%, ensuring accurate circuit performance.
• Stable performance over a wide temperature range due to the low temperature coefficient of resistance (TCR).
• Easy to assemble using standard surface mount soldering techniques.
• Compact size allows for high-density circuit designs.
• Reliable operation due to the robust thick film construction.

Additional Details

The CRCW12066K81FKTA has a power rating of 0.25W (1/4W). The resistor's operating temperature range is typically from -55°C to +155°C. The 1206 package has dimensions of 3.2mm x 1.6mm. It adheres to RoHS compliance, meaning it is free from hazardous substances like lead and mercury. The resistor is typically used in automated assembly processes due to its compatibility with pick-and-place equipment.
