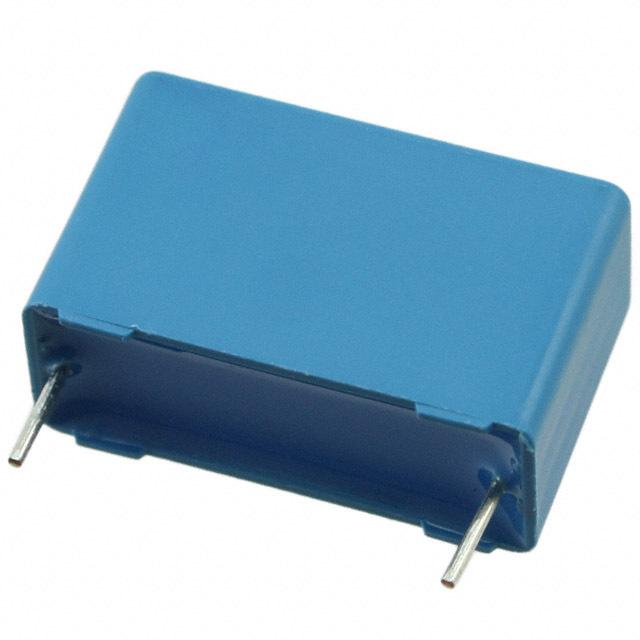

B32523Q1685J EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32523Q1685J

Part No B32523Q1685J
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 6.8UF 5% 100VDC RADIAL
Datasheet
B32523Q1685J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 6.8μF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 1.043" L x 0.335" W (26.50mm x 8.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 000020-B32523Q1685J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32523Q1685J CAD Model

Description

Description

The B32523Q1685J capacitor is engineered for high precision applications where stability and accuracy are paramount. This component is perfect for tasks that demand exact timing and minimal capacitive loss.

Applications

  • Passive crossover networks
  • Frequency discriminators
  • Data acquisition systems
  • Precision signal processing

Features and Benefits

  • Low dissipation factor
  • High ripple current capability
  • Excellent frequency characteristics
  • Robust design to withstand harsh environments

Ideal for precision electronics where reliability is key.
