Same model may have multiple batches, images only for reference.

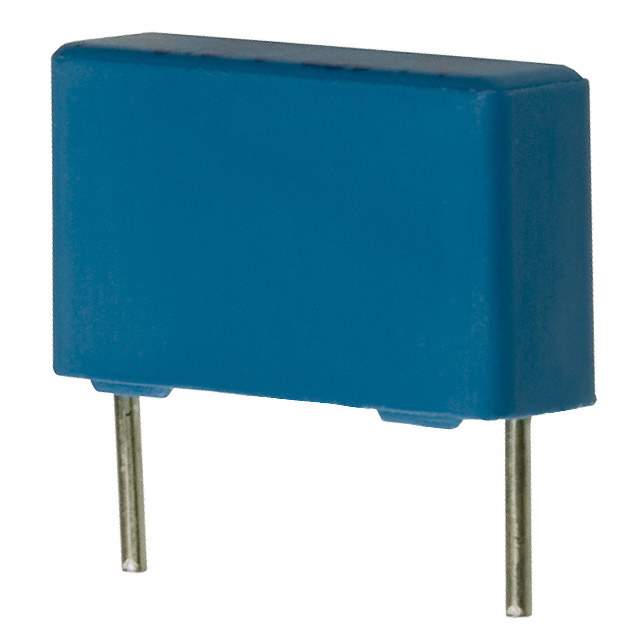

B32522C1105K289 Real Image
Same model may have multiple batches, images only for reference.

B32522C1105K289

Part No B32522C1105K289
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 100VDC RADIAL
Datasheet
B32522C1105K289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging AMMO PACKAGE
Status Active
Capacitance 1μF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 112766-B32522C1105K289
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32522C1105K289 CAD Model

Description

The B32522C1105K289 film capacitor offers exceptional reliability for electronic circuits demanding precision and efficiency. Optimized for both industrial and commercial use, it significantly contributes to the reliability of electronic designs.

Applications

  • Radio frequency interference suppression
  • Power inverters
  • Motor drives
  • Aerospace electronics

Features and Benefits

  • Precise frequency response
  • High-quality film construction
  • Superior insulation resistance
  • Resistance to environmental factors

Additional Details

With a dedication to excellence in performance, the B32522C1105K289 is crafted for those who need components that perform reliably under demanding conditions.
