Same model may have multiple batches, images only for reference.

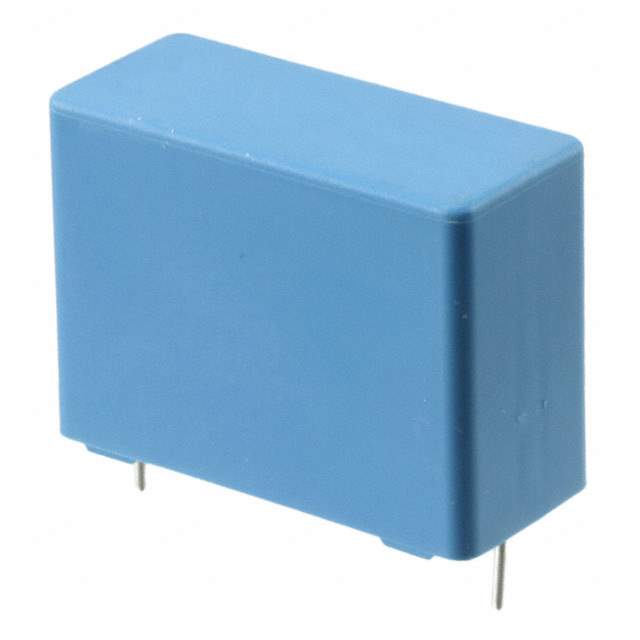

B32024A3334M Real Image
Same model may have multiple batches, images only for reference.

B32024A3334M

Part No B32024A3334M
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.33UF 20% 1.5KVDC RAD
Datasheet
B32024A3334M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 0.33μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Dimension 1.240" L x 0.532" W (31.50mm x 13.50mm)
Height - Seated (Max) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 199583-B32024A3334M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B32024A3334M CAD Model

Description

Description

The B32024A3334M is a versatile and reliable film capacitor suitable for a wide range of electronic applications. Known for its stable capacitance and low dielectric losses, this component is ideal for demanding electronic circuits.

Applications

  • Power Supplies
  • DC-Link Applications
  • Filtering Circuits
  • Pulse and High Frequency Applications

Features and Benefits

  • High Insulation Resistance
  • Low ESR and ESL
  • Long Lifespan and High Reliability
  • Suitable for High Current Applications

Additional Details

This capacitor operates effectively across a wide temperature range, maintaining stability in challenging environments. It is constructed using metallized polypropylene film, ensuring superior performance and durability.
