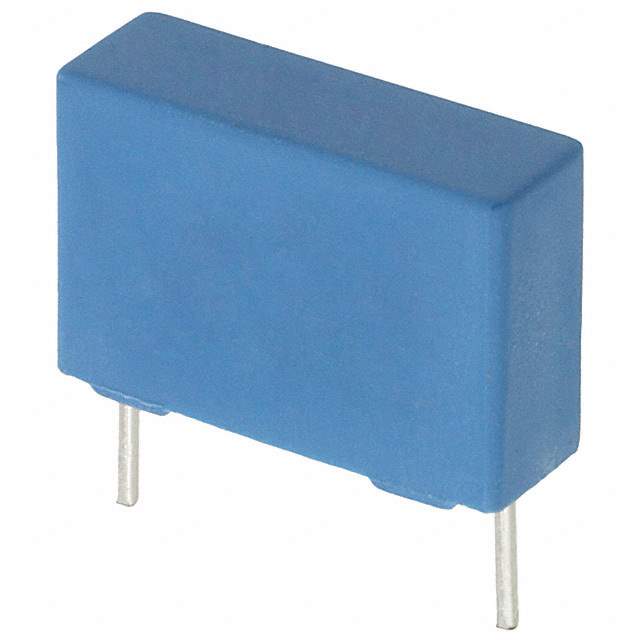

B32022A3223M000 Real Image
Same model may have multiple batches, images only for reference.

B32022A3223M000

Part No B32022A3223M000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.022UF 20% 1.5KVDC RAD
Datasheet
B32022A3223M000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Capacitance 0.022μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.236" W (18.00mm x 6.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 199576-B32022A3223M000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B32022A3223M000 CAD Model

Description

B32022A3223M000 Film Capacitor

The B32022A3223M000 is a versatile film capacitor suitable for diverse applications such as energy storage, power conditioning, and filtering in audio and RF circuits.

  • Applications: Energy storage, Power conditioning, Audio and RF filtering
  • Features and Benefits: Low dielectric absorption, High capacitance stability, Excellent insulation resistance
  • Additional Details: Rated capacitance of 22000pF, Voltage rating of 275V, Temperature range: -30°C to +85°C
