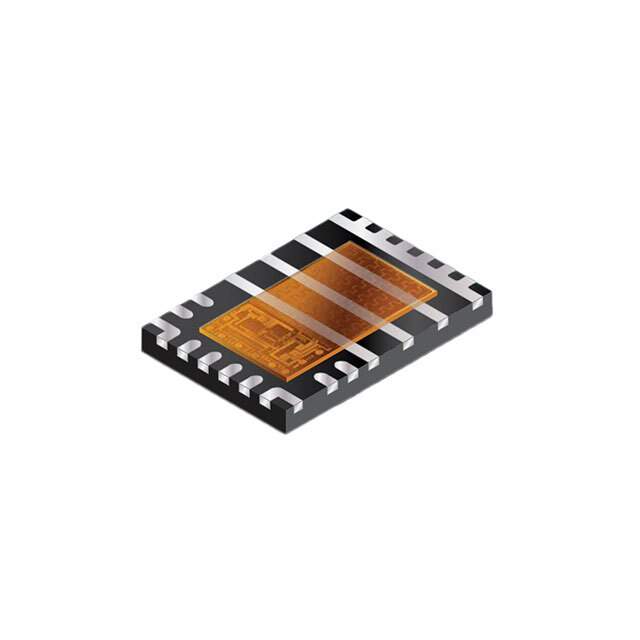

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr EPC
Series ePower™
Package Tape & Reel
Output Configuration Half Bridge
Applications General Purpose
Interface Logic
Load Type Inductive, Capacitive, Resistive
Technology NMOS
Current - Output / Channel 65A
Voltage - Supply 10V ~ 80V
Voltage - Load 10V ~ 80V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Base Product Number EPC23101
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337833-EPC23101ENGRT
Ultra Librarian 3D Model Ultra Librarian EPC23101ENGRT CAD Model

Description

The EPC ePower™ series full half-bridge driver is a high-performance integrated circuit that is perfect for use in a variety of applications.

  • Current Output: 65A
  • Voltage Load: 10V to 80V
  • Output Configuration: Half-Bridge
  • Load Type: Inductive, Capacitive, and Resistive
  • Mounting Type: Surface Mountable
  • Operating Temperature: -40°C to 125°C
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Technology: NMOS
  • Logic Interface: Yes
