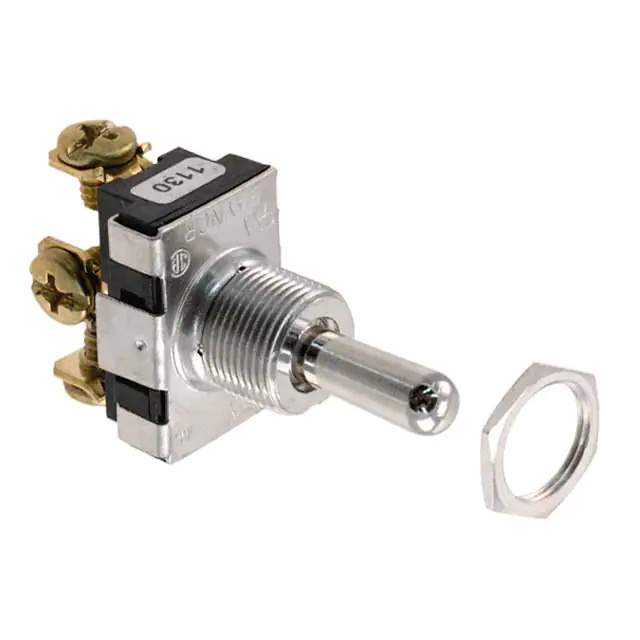

7101B Real Image
Same model may have multiple batches, images only for reference.

7101B

Part No 7101B
Manufacturer Electroswitch
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Datasheet
7101B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Electroswitch
Series 7100
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 14.27mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Bushing Thread 15/32-32
Temperature Range - Operating -10°C ~ 65°C
Electrical Life 10,000 Cycles
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 907787-7101B
Ultra Librarian 3D Model Ultra Librarian 7101B CAD Model

Description

The 907787-7101B is a toggle switch from the 7100 series by Electroswitch.

  • Series: 7100
  • Switch Type: Toggle
  • Configuration: SPDT (Single-Pole, Double-Throw)
  • Switch Function: On-On
  • Voltage Rating: 125V AC
  • Current Rating: 6A
  • Terminal Type: Screw
  • Actuator Type: Standard Round
  • Actuator Length: 14.27mm
  • Electrical Life: 10,000 cycles
  • Illumination: Non-Illuminated
  • Mounting Type: Panel Mount
  • Operating Temperature: -10°C to 65°C
