Same model may have multiple batches, images only for reference.

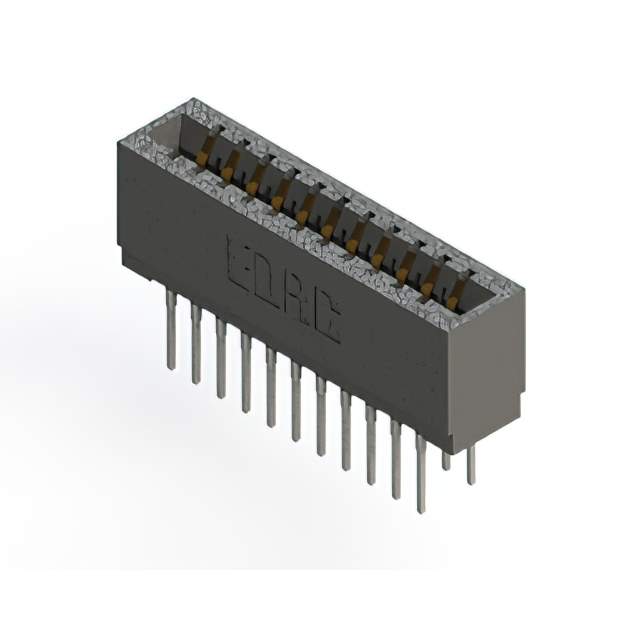

726-022-527-201 Real Image
Same model may have multiple batches, images only for reference.

726-022-527-201

Part No 726-022-527-201
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 726 SERIES (.125" (3.18MM) CONTA / 22 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 726
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 11
Number of Positions 22
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.125" (3.18mm)
Read Out Dual
Mounting Type Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 2
Base Product Number 726-022
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-726-022-527-201
Standard Package 25
Win Source Part Number 1041076-726-022-527-201
Ultra Librarian 3D Model Ultra Librarian 726-022-527-201 CAD Model

Description

The EDAC Inc. 726-022-527-201 is a dual-edge card edge connector designed to connect printed circuit boards.

  • Manufacturer: EDAC Inc.
  • Connector Type: Card Edge
  • Positions: 22
  • Pitch: 0.125 inches (3.18mm)
  • Package: Bulk
  • Standard Package: 25
  • Mount: Press-Fit
  • Contact Type: Cantilever
  • Contact Finish: Gold
