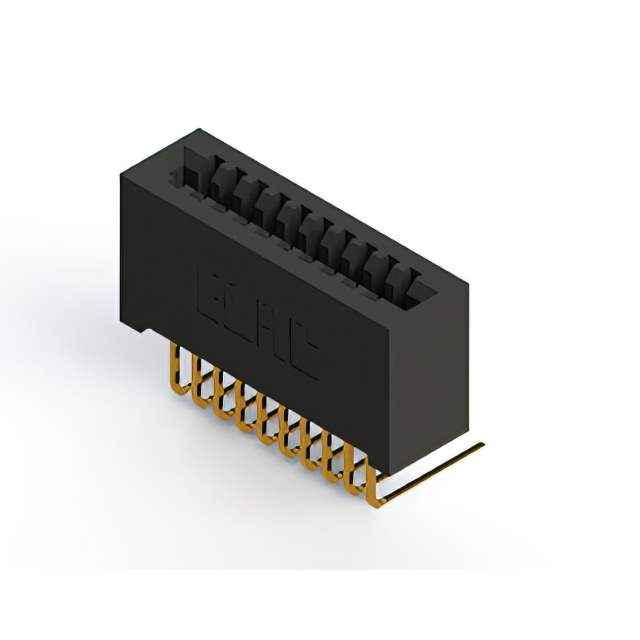

392-010-558-101 Real Image
Same model may have multiple batches, images only for reference.

392-010-558-101

Part No 392-010-558-101
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 392 SERIES (.100" (2.54MM) CONTA / 10 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
392-010-558-101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 392
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 10
Number of Positions 10
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole, Right Angle
Termination Solder, Wire Wrap
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 392-010
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-392-010-558-101
Standard Package 25
Win Source Part Number 1041122-392-010-558-101
Ultra Librarian 3D Model Ultra Librarian 392-010-558-101 CAD Model

Description

The 392-010-558-101 is a card edge connector manufactured by EDAC Inc.

  • Rows: Single
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Thickness: 10.0µin (0.25µm)
  • Operating Temperature Range: -40°C to 105°C
