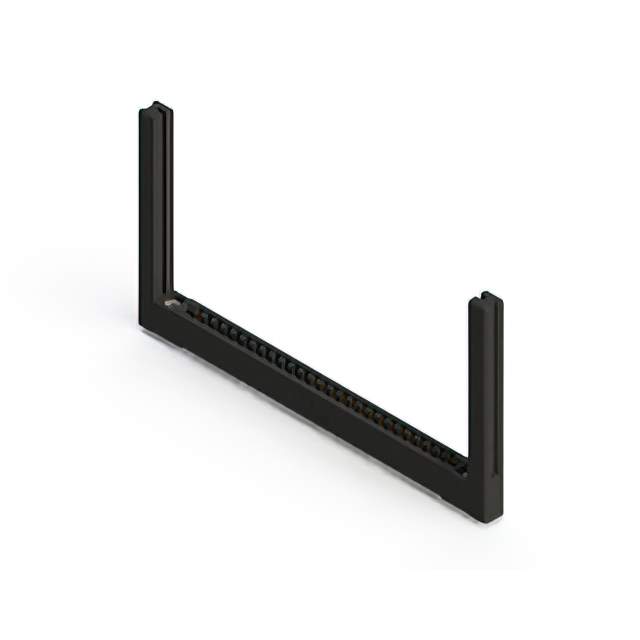

357-027-505-158 Real Image
Same model may have multiple batches, images only for reference.

357-027-505-158

Part No 357-027-505-158
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description 357 SERIES (.156" (3.96MM) CONTA / 27 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
Datasheet
357-027-505-158 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 357
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 27
Number of Positions 27
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.156" (3.96mm)
Read Out Single
Features Card Guides
Mounting Type Through Hole
Termination Solder Eyelet(s)
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Semi Bellows
Color Black
Flange Feature Flush Mount, Top Opening, Threaded Insert, 4-40
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 357-027
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-357-027-505-158
Standard Package 25
Win Source Part Number 1040726-357-027-505-158
Ultra Librarian 3D Model Ultra Librarian 357-027-505-158 CAD Model

Description

The 1040726-357-027-505-158 is a female connector with 27 positions.

  • Series: 357
  • Positions: 27
  • Pitch: 0.156" (3.96mm)
  • Color: Black
  • Features: Card Guides
  • Contact Type: Semi Bellows
  • Termination: Solder Eyelet(s)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Packaging: Box
  • Contact Material: Copper Alloy
  • Insulation Material: Polyester Thermoplastic
  • Mounting Feature: Flush Mount, Top Opening, Threaded Insert, 4-40 Flange
  • Temperature Range: -40°C ~ 105°C
  • REACH: Unaffected
