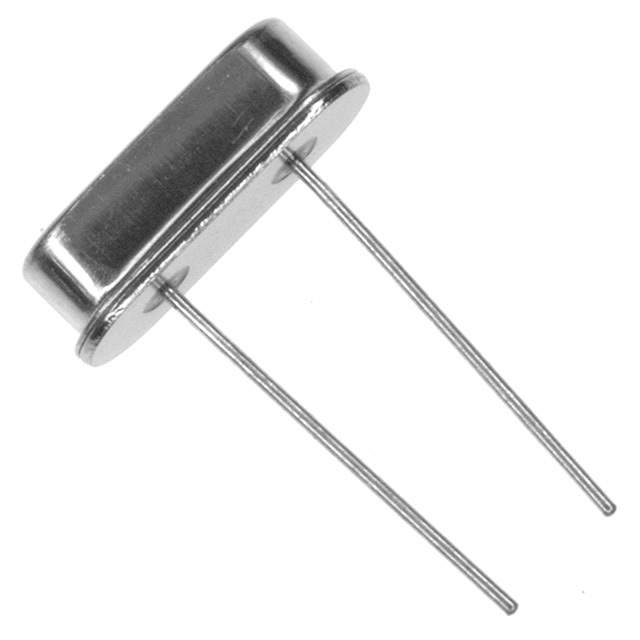

ECS-60-18-4XEN Real Image
Same model may have multiple batches, images only for reference.

ECS-60-18-4XEN

Part No ECS-60-18-4XEN
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 6.0000MHZ 18PF TH / 6 MHz ±30ppm Crystal 18pF 100 Ohms HC-49/US
Datasheet
ECS-60-18-4XEN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series HC-49USX
Package Bulk
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1340176-ECS-60-18-4XEN
Ultra Librarian 3D Model Ultra Librarian ECS-60-18-4XEN CAD Model

Description

The ECS Inc. 1340176-ECS-60-18-4XEN is a HC-49USX series MHz crystal.

  • Series: HC-49USX
  • Type: MHz Crystal
  • Package Type: Bulk
  • Size / Dimension: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • Height - Seated (Max): 0.138" (3.50mm)
  • Standard Package: 200
  • Frequency: 6 MHz
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Mounting Type: Through Hole
  • Package / Case: HC-49/US
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0050
