ECS-80-18-4XDN ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

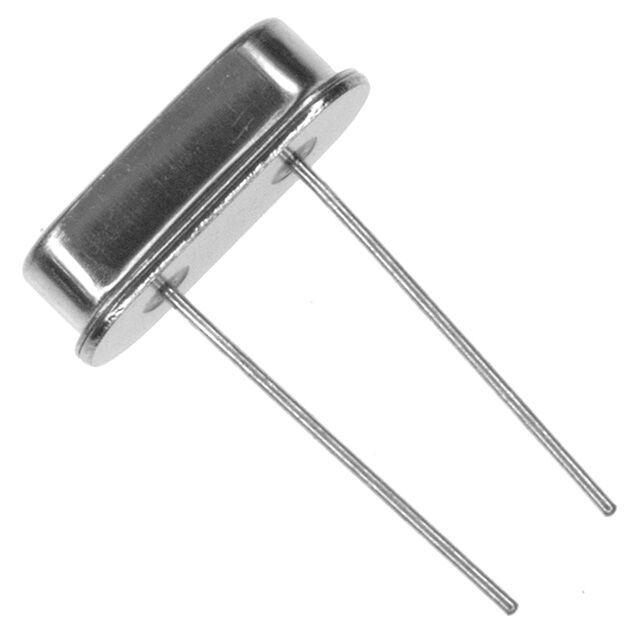

ECS-80-18-4XDN

Part No ECS-80-18-4XDN
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF TH
Datasheet
ECS-80-18-4XDN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsCrystals
Mfr ECS Inc.
Series HC-49USX-DN
Packaging Bulk
Part Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
Ultra Librarian 3D Model Ultra Librarian ECS-80-18-4XDN CAD Model
