Same model may have multiple batches, images only for reference.

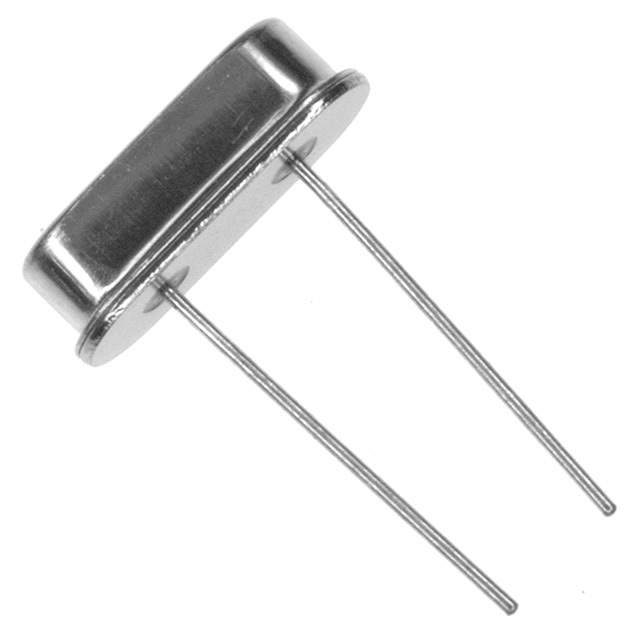

ECS-42-18-4XEN Real Image
Same model may have multiple batches, images only for reference.

ECS-42-18-4XEN

Part No ECS-42-18-4XEN
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 4.194304MHZ 18PF T/H / Crystal 4.194304MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 150Ohm 2-Pin HC-49/USX Thru-Hole Bulk
Datasheet
ECS-42-18-4XEN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series HC-49USX
Packaging Bulk
Type MHz Crystal
Frequency 4.194304MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 150 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package HC49/US
Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Maximum) 0.138" (3.50mm)
Win Source Part Number 799548-ECS-42-18-4XEN
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECS-42-18-4XEN CAD Model

Description

The ECS Inc. ECS-42-18-4XEN from ECS Inc. is a MHz crystal that has a frequency of 4.194304MHz and can operate in a temperature range of -40°C to 85°C.

  • Frequency: 4.194304MHz
  • Load Capacitance: 18pF
  • ESR: 150 Ohm
  • Mounting: Through Hole
  • Dimensions: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • Height: 0.138" (3.50mm)
