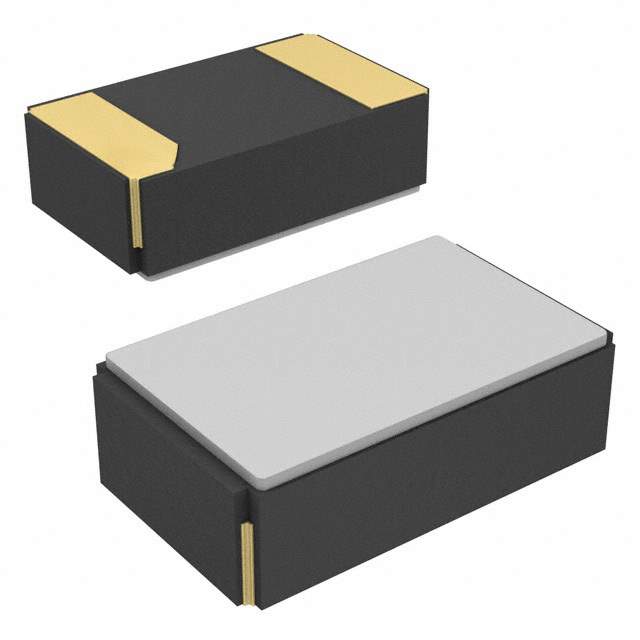

ECS-.327-6-12-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-.327-6-12-TR

Part No ECS-.327-6-12-TR
Manufacturer ECS Inc.
Catalog Oscillators
Datasheet
ECS-.327-6-12-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series ECX-12
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Other Names XC1945TR,XC1945CT,XC1945DKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1284995-ECS-.327-6-12-TR
Ultra Librarian 3D Model Ultra Librarian ECS-.327-6-12-TR CAD Model

Description

ECS Inc. ECX-12 series crystal is a kHz crystal (tuning fork) type that comes in tape & reel package type.

  • Series: ECX-12 series
  • Package Type: Tape & Reel
  • Standard Package: 3,000
  • Package/Case: 2-SMD, no lead
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 90 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 6pF
  • Operating Mode: Fundamental
  • Height Seated (Max): 0.024 inches (0.60mm)
  • Temperature Range for Operating: -40°C to 85°C
  • Dimension: 0.079 inches L x 0.047 inches W (2.00mm x 1.20mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.60.0010
