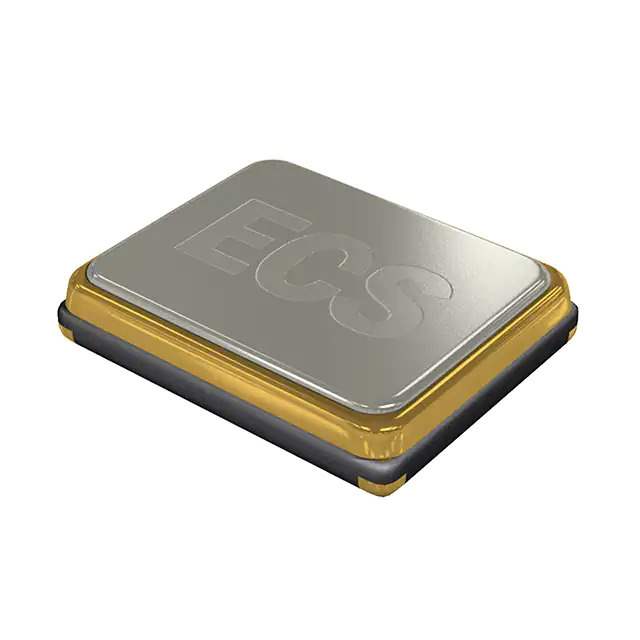

ECS-320-8-37CKM Real Image
Same model may have multiple batches, images only for reference.

ECS-320-8-37CKM

Part No ECS-320-8-37CKM
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 8PF SMD
Datasheet
ECS-320-8-37CKM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-1637
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 844175-ECS-320-8-37CKM
Ultra Librarian 3D Model Ultra Librarian ECS-320-8-37CKM CAD Model

Description

The ECX-1637 series 844175-ECS-320-8-37CKM is a MHz crystal oscillator with a frequency of 32MHz.

  • Series: ECX-1637
  • Frequency: 32MHz
  • Size: 0.079" L x 0.063" W
  • Height: 0.022"
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Temperature Range: -20°C to 70°C
  • Load Capacitance: 8pF
  • ESR: 60 Ohms
  • Mounting: Surface Mountable
  • Packaging: Tape and Reel
  • Manufacturer: ECS Inc.
  • Product Status: Active
