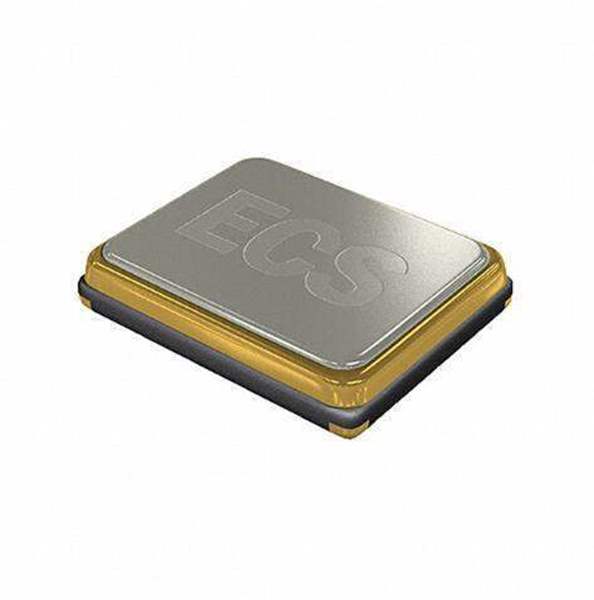

ECS-320-6-47B-CKY-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-320-6-47B-CKY-TR

Part No ECS-320-6-47B-CKY-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 32.0000MHZ 6PF SMD
Datasheet
ECS-320-6-47B-CKY-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Operating Temperature -30°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Win Source Part Number WS1304830-ECS-320-6-47B-CKY-TR
Ultra Librarian 3D Model Ultra Librarian ECS-320-6-47B-CKY-TR CAD Model

Description

The sub miniature ECX-1247B is a very compact SMD Crystal. The 1.6 x 1.2 x 0.3 mm ceramic package is ideal for RFID, NFC, WiFi, RF, Video, and Audio applications.
