Same model may have multiple batches, images only for reference.

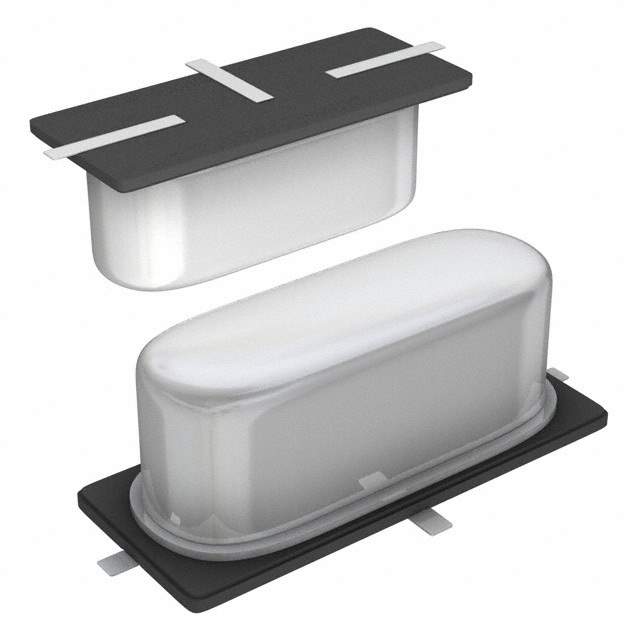

ECS-240-20-5G3XDS-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-240-20-5G3XDS-TR

Part No ECS-240-20-5G3XDS-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 20PF SMD
Datasheet
ECS-240-20-5G3XDS-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 26 Weeks
Features 24 MHz ±30ppm Crystal 20pF 30 Ohms HC-49/US
Manufacturer ECS Inc.
Series CSM-7X-3L
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package HC-49/US
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number XC1506CT, ECS240205G3XDSTR, ECS-240-20-5G3DS-TR, XC1506DKR, XC1506TR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870075-ECS-240-20-5G3XDS-TR
Ultra Librarian 3D Model Ultra Librarian ECS-240-20-5G3XDS-TR CAD Model

Description

The ECS Inc. CSM-7X-3L is a crystal with a frequency of 24 MHz and a frequency stability of ±30ppm.

  • Manufacturer: ECS Inc.
  • Series: CSM-7X-3L
  • Frequency: 24 MHz
  • Frequency Stability: ±30ppm
  • Package: HC-49/US
  • Mounting: Surface Mountable
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 26 weeks
