Same model may have multiple batches, images only for reference.

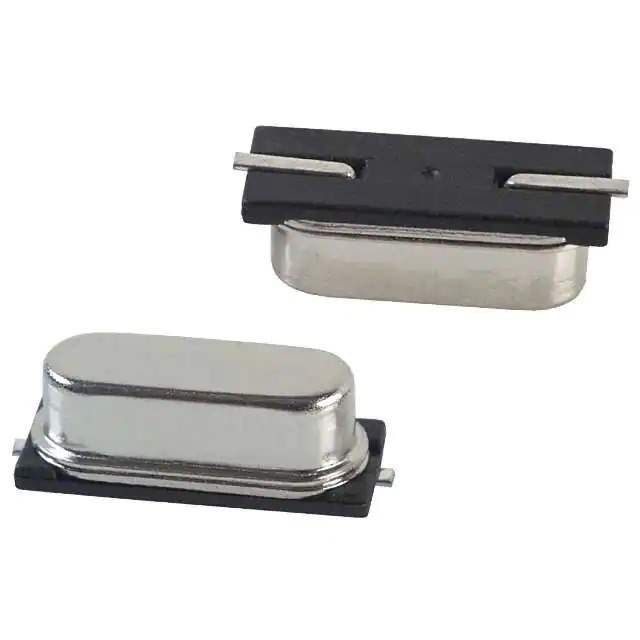

ECS-240-12-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-240-12-5PX-TR

Part No ECS-240-12-5PX-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 12PF SMD / 24 MHz ±30ppm Crystal 12pF 30 Ohms HC-49/US
Datasheet
ECS-240-12-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series CSM-7X
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 917798-ECS-240-12-5PX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-240-12-5PX-TR CAD Model

Description

The 917798-ECS-240-12-5PX-TR is a MHz crystal manufactured by ECS Inc.

  • Series: CSM-7X
  • Type: surface mount
  • Package: tape & reel
  • Size/Dimension: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Height Seated: 0.169" (4.30mm)
  • Standard Package: 1,000 pieces
  • Frequency: 24 MHz
  • ESR: 30 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 12pF
  • Mode: fundamental
  • Mounting Technology: surface mount
  • Package/Case: HC-49/US
  • Temperature Range: -10°C to 70°C
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS: 8541.60.0060
  • Status: active
