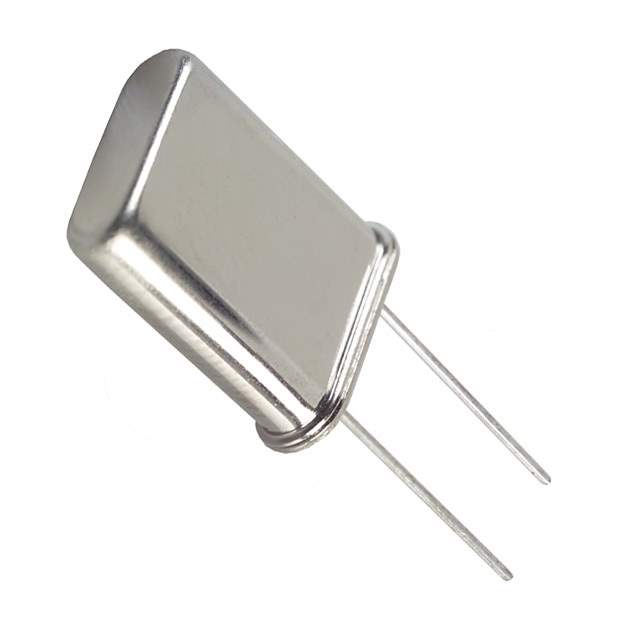

ECS-18-32-1 Real Image
Same model may have multiple batches, images only for reference.

ECS-18-32-1

Part No ECS-18-32-1
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 1.8432MHZ 32PF TH / 1.8432 MHz ±30ppm Crystal 32pF 750 Ohms HC-49/U
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series HC-49U
Package Bulk
Type MHz Crystal
Frequency 1.8432 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 32pF
ESR (Equivalent Series Resistance) 750 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.530" (13.46mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0030
Other Names Q1511741
Standard Package 100
Win Source Part Number 1154324-ECS-18-32-1
Ultra Librarian 3D Model Ultra Librarian ECS-18-32-1 CAD Model

Description

The 1154324-ECS-18-32-1 from ECS Inc. is a bulk-packaged HC-49U series MHz crystal.

  • Height: 0.530" (13.46mm)
  • Standard Package: 100
  • Frequency: 1.8432 MHz
  • ESR: 750 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 32pF
  • Operating Mode: Fundamental
  • Mounting Type: Through-Hole, HC-49/U
  • Operating Temperature: -10°C ~ 70°C
  • Dimension: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • RoHS: Non-Compliant
