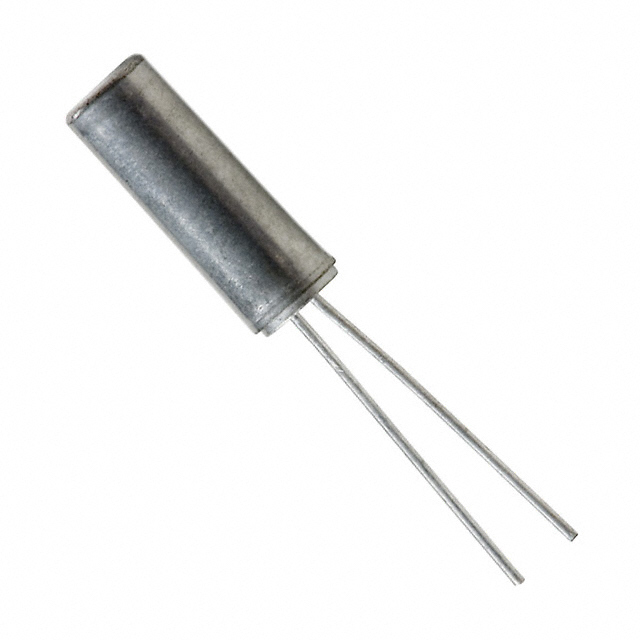

Same model may have multiple batches, images only for reference.

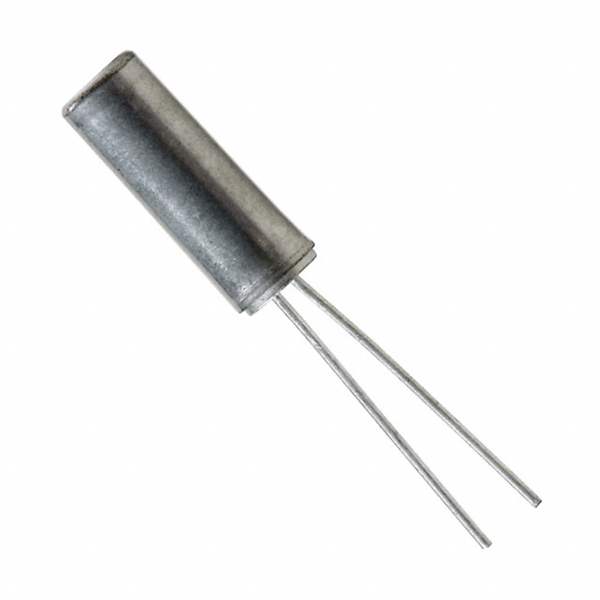

ECS-120-20-4X ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-120-20-4X

Part No ECS-120-20-4X
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 20PF TH
Datasheet
ECS-120-20-4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Case / Package HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138\
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1529129-ECS-120-20-4X
Ultra Librarian 3D Model Ultra Librarian ECS-120-20-4X CAD Model
