Same model may have multiple batches, images only for reference.

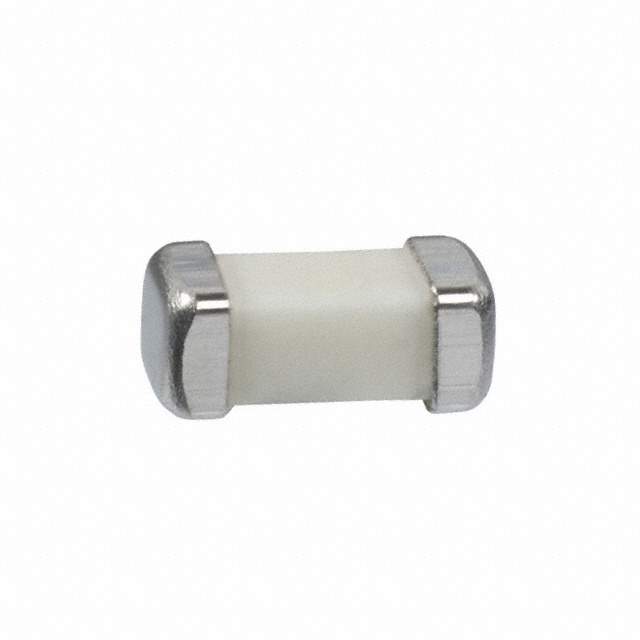

TR2/6125FA250MA Real Image
Same model may have multiple batches, images only for reference.

TR2/6125FA250MA

Part No TR2/6125FA250MA
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 250MA 125VAC/VDC / 250 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
TR2/6125FA250MA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series BRICK 6125FA
Package Tape & Reel
Product Status Obsolete
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 250 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I2t 0.01
Approval Agency CSA, UL
Dimension 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm)
DC Cold Resistance 0.65 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 283-2521-6,TR2-6125FA250MA,TR26125FA250MA,283-2521-2,283-2521-1
Standard Package 5,000
Win Source Part Number 1039561-TR2/6125FA250MA
Ultra Librarian 3D Model Ultra Librarian TR2/6125FA250MA CAD Model

Description

The BRICK 6125FA is a fast-blow board mount fuse that is widely used in the electronics industry.

  • Type: Fast-Blow Fuse
  • Voltage Rating: 125V AC/DC
  • Breaking Capacity: 50A AC and 300A DC @ rated voltage
  • Fuse Type: SMD (SMT)
  • Package: Tape and Reel
  • Current Rating: 250mA
  • DC Cold Resistance: 0.65 ohms
  • Dimension: 0.240 inches (6.10mm) L x 0.102 inches (2.59mm) W x 0.102 inches (2.59mm) H
  • Mounting: 2-SMD, square end block
  • Temperature Range: -40°C to 85°C
  • Standard Packages: 5,000
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Status: Obsolete
  • Alternative Parts: Yes
