Same model may have multiple batches, images only for reference.

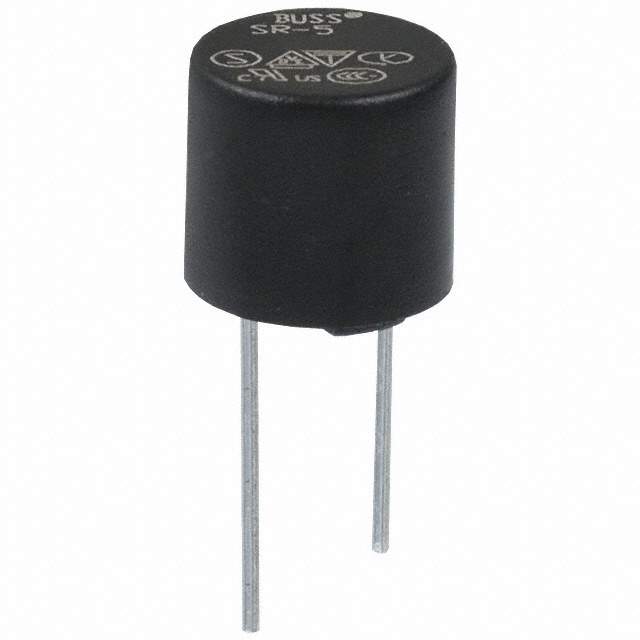

SR-5-1A-AP Real Image
Same model may have multiple batches, images only for reference.

SR-5-1A-AP

Part No SR-5-1A-AP
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 1A 250VAC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 14 Weeks
Features AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
Manufacturer Eaton Bussmann
Series SR-5
Package Cut Tape (CT), Tape & Box (TB)
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package Radial, Can, Vertical
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number SR51AAP, 283-2569-1, 283-2569-3
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934943-SR-5-1A-AP
Ultra Librarian 3D Model Ultra Librarian SR-5-1A-AP CAD Model

Description

The SR-5 series fuse from Eaton Bussmann is a circuit protection device designed for AC and DC applications.

  • Series: SR-5
  • Manufacturer: Eaton Bussmann
  • Application: AC and DC
  • Mounting Type: Through-Hole
  • Package: Radial, Can, Vertical
  • Packaging: Cut Tape (CT), Tape & Box (TB)
  • Package Quantity: 1000
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
